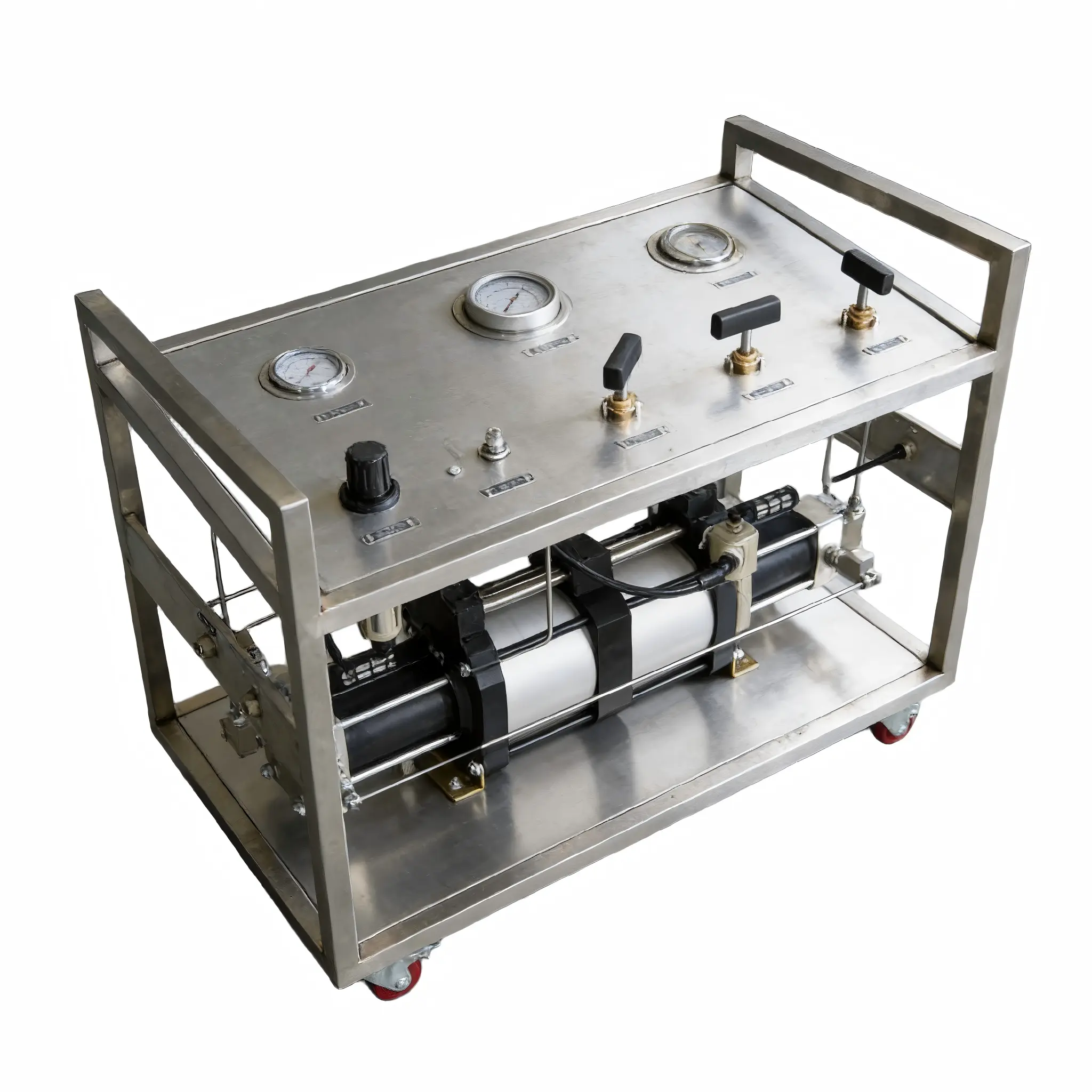

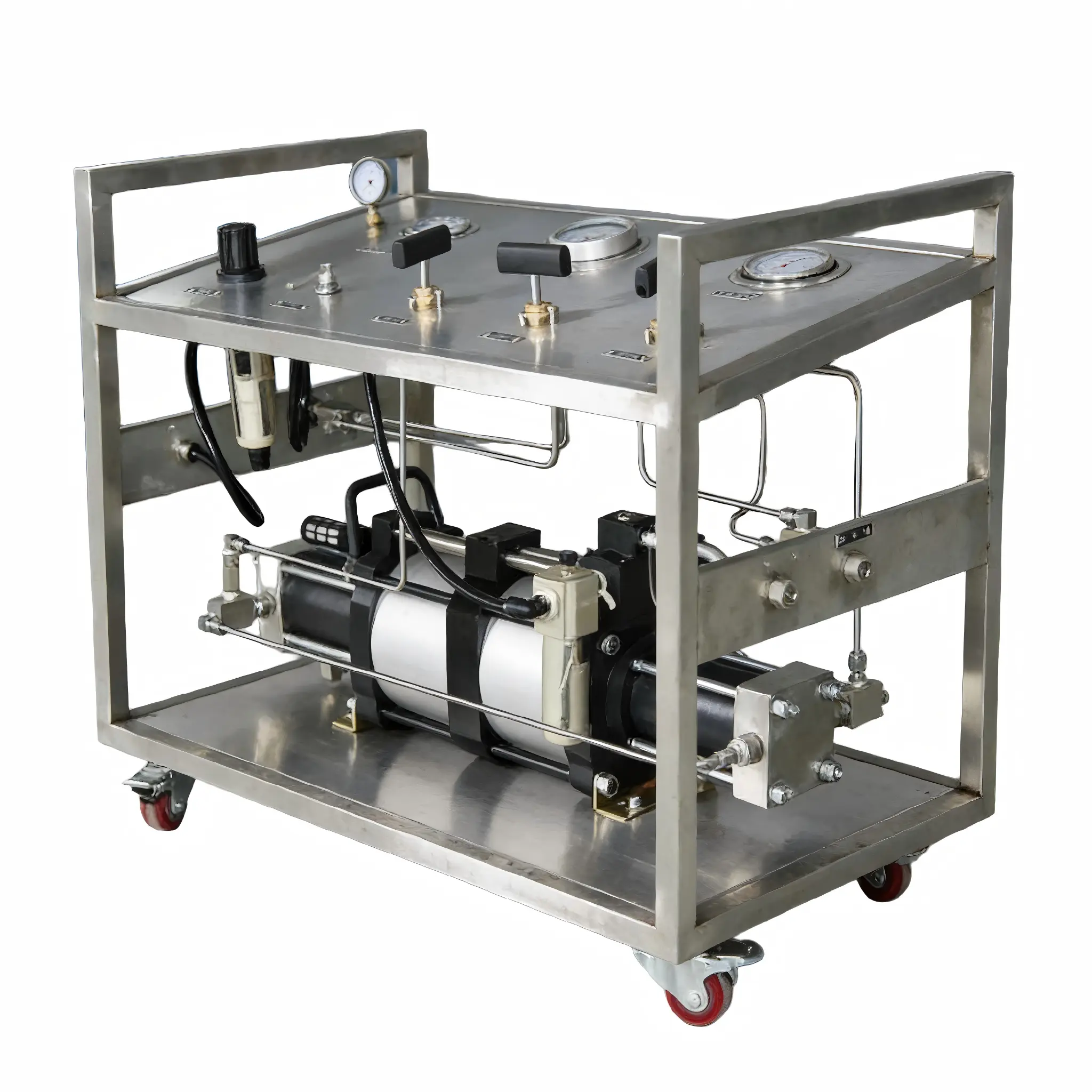

Air-driven Gas Booster Pump for Hazardous Areas
The explosion-proof gas pressure intensifier complies with the Ex d IIB T4 Ga explosion-proof standard, specially designed for flammable and explosive hazardous areas such as petroleum, chemical, and coal mining industries. All components of the equipment are made of explosion-proof materials, equipped with an explosion-proof pressure gauge and an explosion-proof solenoid valve. It can be safely used for gas boosting, pressure testing and other operations in hazardous areas, providing compliant and stable high-pressure gas source support for high-risk environments.
Main Advantage
Application
Gas boosting at oilfield wellheads, pressure testing in hazardous areas of chemical plants, high-pressure gas sources for underground pneumatic equipment in coal mines, pipeline airtightness detection in refineries, pressure testing of natural gas station equipment, gas supply for pneumatic tools in dangerous goods warehouses.
All-Weather Adaptability
Adapts to a wide temperature range of -30℃~+60℃, enabling stable operation in cold oilfields and high-temperature chemical workshops; equipped with fixed feet at the bottom, supporting fixed floor installation to avoid equipment movement in hazardous areas; with dust protection function, usable in dusty coal mining environments.
Technical Parameters
| Item | Specifications |
| Model | GPI-E Series (Customizable) |
| Inlet Pressure Range | 0.4~0.9MPa |
| Outlet Pressure Range | 3~25MPa (Customizable up to 40MPa) |
| Pressure Ratio | 1:7 / 1:12 / 1:20 (Optional) |
| Medium | Compressed Air, Natural Gas, Nitrogen |
| Explosion-Proof Grade | Ex d IIB T4 Ga |
| Drive Mode | Pneumatic |
| Operating Temperature | -30℃~+60℃ |
| Material | 316L Stainless Steel (Gas-Contact Components) + Carbon Steel (Explosion-Proof Shell) |
| Control Mode | Local Control + Wireless Remote Control (100m) |
Customizable explosion-proof grade (up to Ex d IIC T6 Ga), medium compatibility (e.g., high-sulfur gas-resistant), and integrated gas leakage detection system to meet your hazardous area gas boosting requirements.
