Ball Valve

Ball valve series covers a wide range of industrial applications, featuring floating ball or eccentric hemisphere designs that provide reliable sealing performance and low flow resistance. Whether for standard conditions, low-temperature environments, jacketed heating requirements, or high-wear and high-viscosity media, we offer professional solutions. All products comply with American standards, API, ASME, and international specifications, supporting manual, pneumatic, electric, and hydraulic actuation.

Downloads

Core Advantage

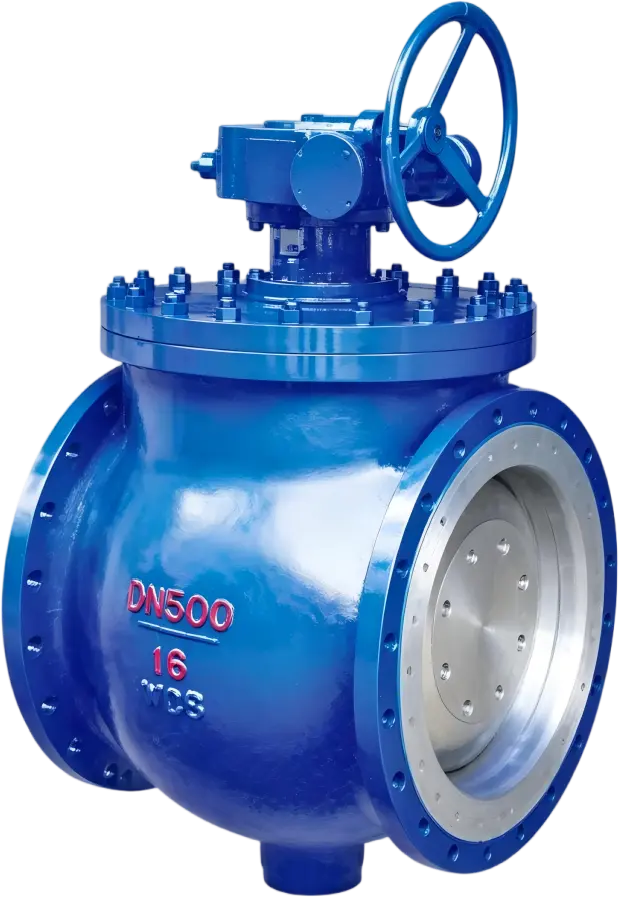

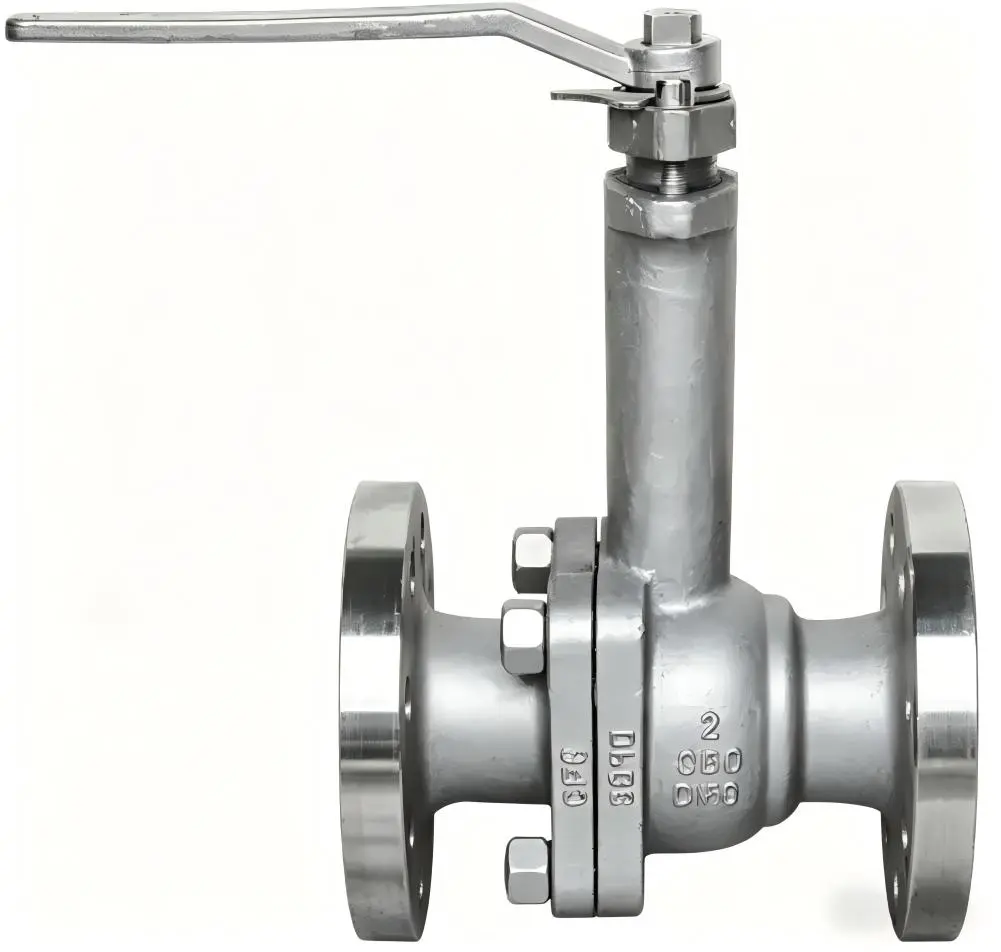

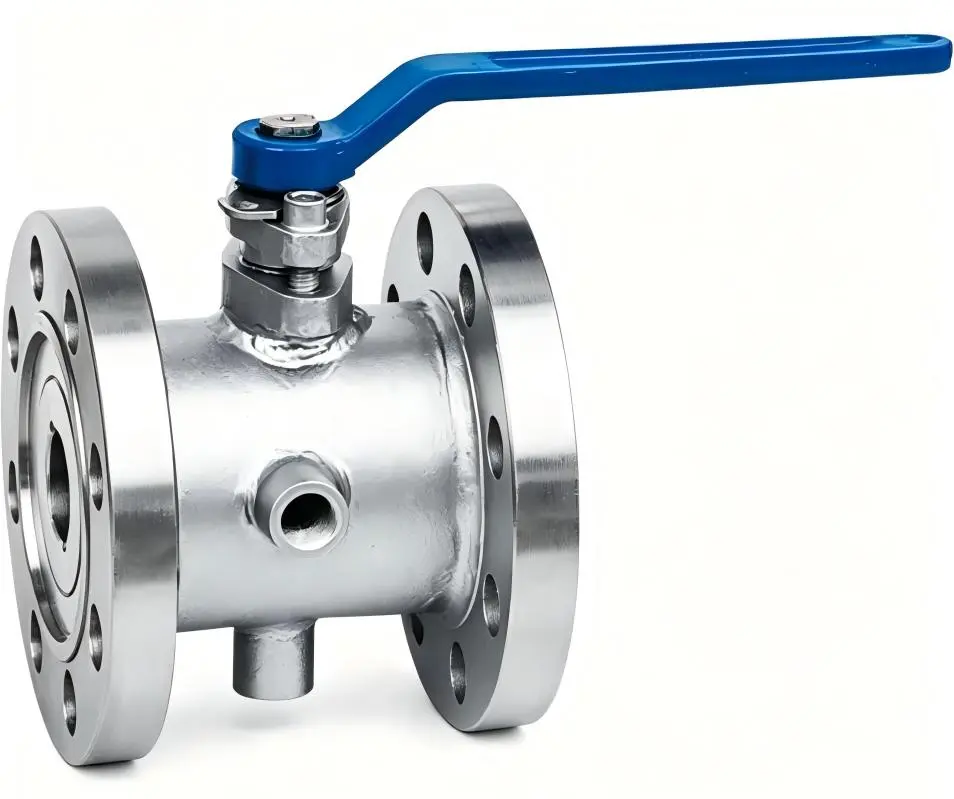

Multiple structural types: Two-piece, three-piece, double eccentric hemisphere, low-temperature, and jacketed designs for various process needs
Reliable sealing: Self-tightening pressure seal, bubble-tight sealing; soft sealing (PTFE/PEEK) or metal hard sealing options
Wide temperature and pressure range: Temperature from -196°C to +600°C, pressure ratings from Class 150 to Class 2500
Online maintenance: Three-piece structure allows seat and ball replacement without pipeline disassembly, reducing downtime
Low wear, long service life: 90° quick opening/closing; double eccentric design reduces friction; self-cleaning available on select models
Rich material selection: Stainless steel (304/316L), carbon steel (WCB), alloy steel, nickel-based alloys

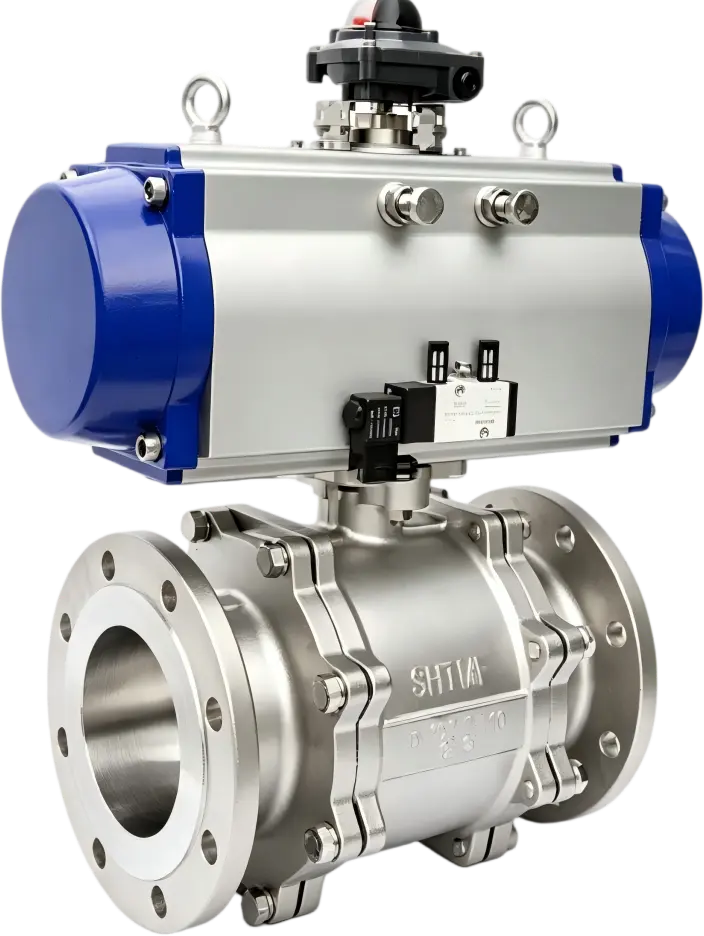

Flexible actuation: Manual, pneumatic, electric, hydraulic, with ISO 5211 mounting interface support
Safety features: Blowout-proof stem, anti-static device, fire-safe design (API 607)

Application

Used in piping systems requiring fast shut-off or frequent operation, such as oil and gas transmission, chemical reactor feed/discharge, and LNG low-temperature lines. Also suitable for high-viscosity media (e.g., asphalt, molten sulfur) or jacketed heating applications, as well as high-pressure steam and high-temperature thermal oil systems

Technical Parameters

Parameter	Range
Port Size	1/2″ – 48″ (DN15 – DN1200)
Pressure Rating	Class 150 – Class 2500 (PN10 – PN420)
Temperature Range	-196°C to +600°C (depending on seal material and structure)
Body Material	Stainless steel, carbon steel, alloy steel, duplex steel
Seal Material	PTFE, PEEK, Viton, EPDM, Stellite, tungsten carbide
Connection Type	Flanged, threaded, butt-weld, socket-weld, clamp
Actuation	Manual, pneumatic, electric, hydraulic
Design Standards	API 6D, API 608, ASME B16.34, ISO 14313
