BOP Control System (Surface)

The system is designed and manufactured strictly in accordance with API Spec 16D standards. It serves as the core control unit for surface BOP stacks, remotely driving the opening and closing of annular BOPs, ram BOPs, and hydraulic valves via high-pressure hydraulic fluid. As a critical safety device for preventing blowouts and protecting personnel and equipment during drilling operations, it offers exceptional reliability and emergency response capabilities for both onshore and offshore environments.

Downloads

System Configuration

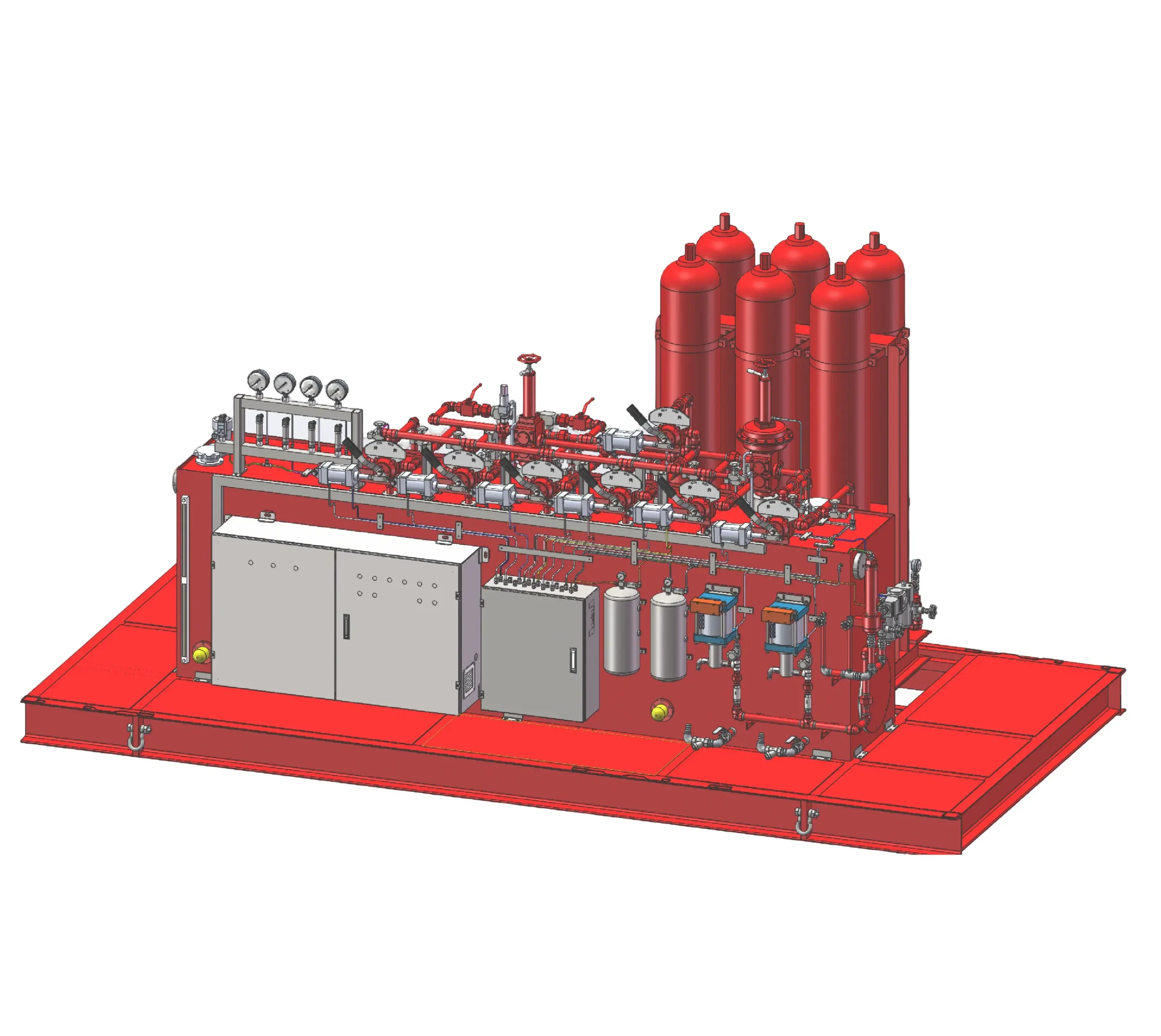

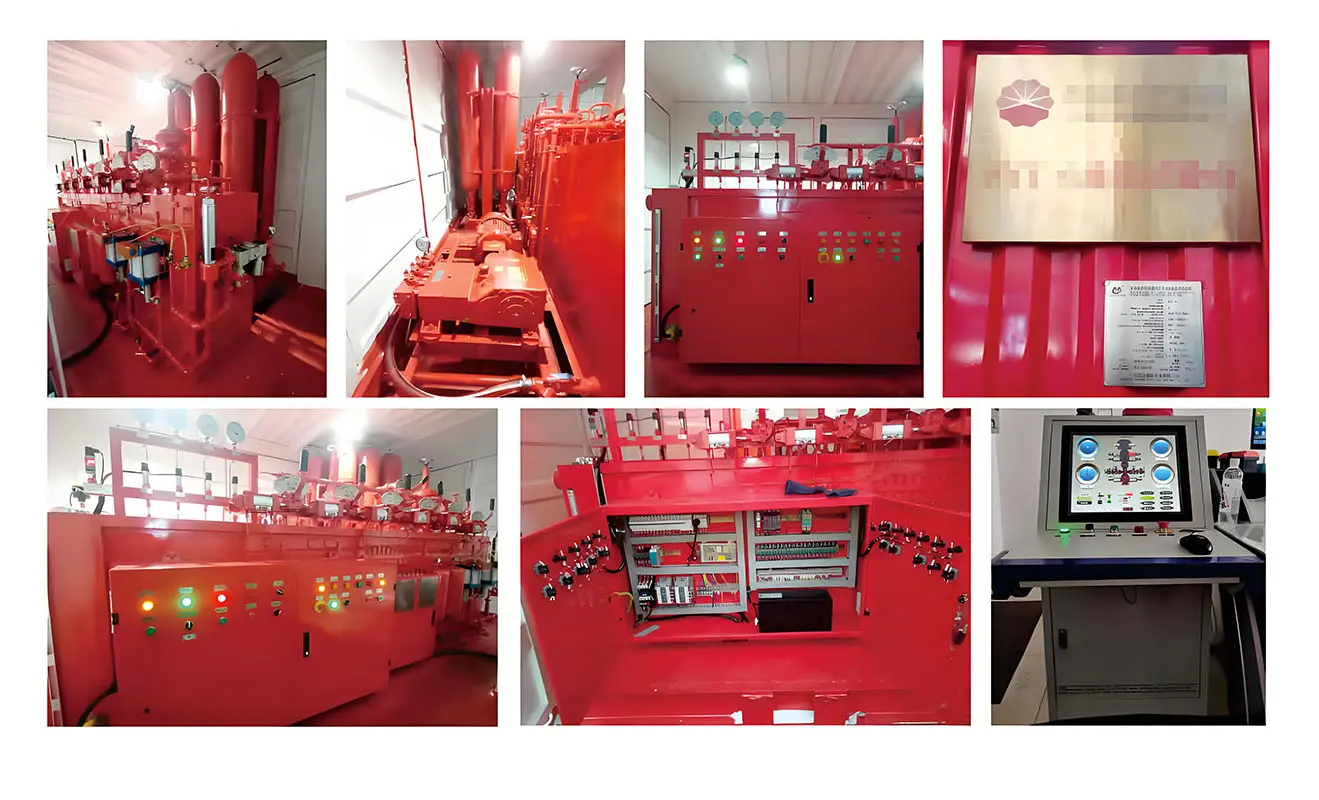

Remote Control Unit (HPU): Integrates the accumulator bank, hydraulic pump sets (dual electric/pneumatic power), oil reservoir, and control manifold.

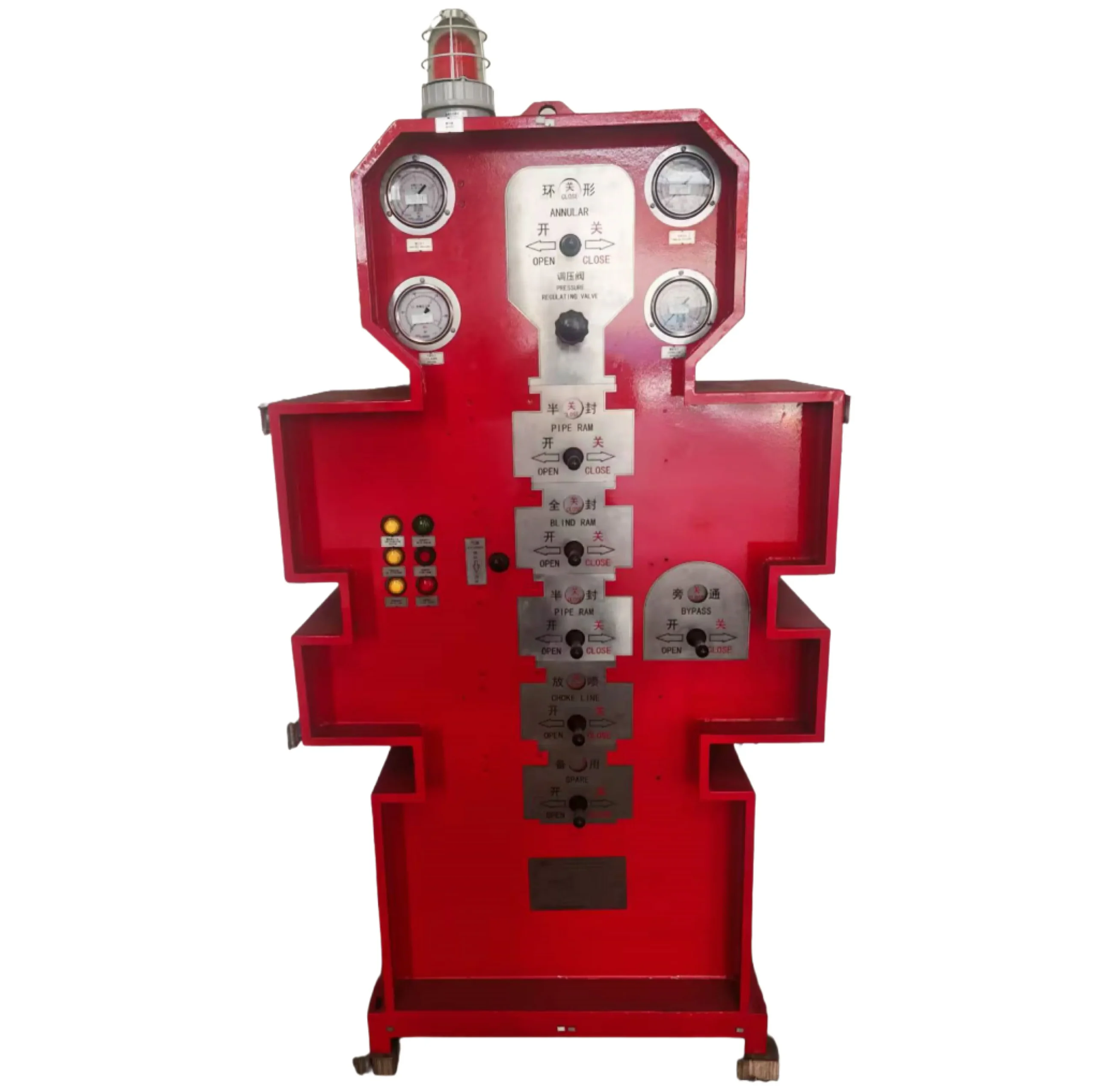

Driller’s Control Panel: Located on the drill floor, allowing real-time operation of the remote unit via pneumatic or electrical signals.
Auxiliary Control Panel (Optional): Provides additional monitoring and control nodes for complex operations.
Manifolds & Umbilicals: Ensures stable transmission of hydraulic fluid and control signals between all units.

Key Features

Standard Compliance: Fully compliant with API 16D specifications, with all core components undergoing rigorous high-pressure testing.
Dual Redundant Power: Equipped with independent electric and pneumatic pumps to ensure continuous hydraulic power even if one power source fails.
Emergency Shut-in: The accumulator bank stores sufficient energy to quickly close the BOP stack during a total power loss.
Intuitive Operation: The control panels feature clear logic, pressure alarms, and graphical interfaces to minimize the risk of human error.

Technical Specifications

No.	Product Series	Model
1	FK Series	FK125-2	FK125-3
2	FKQ Series	FKQ320-4	FKQ480-5	FKQ480-6	FKQ640-6	FKQ640-7
		FKQ800-5	FKQ800-6	FKQ800-7	FKQ800-8	FKQ960-7
		FKQ960-8	FKQ960-9	FKQ960-10	FKQ1120-7	FKQ1120-8
		FKQ1120-10	FKQ1120-12	FKQ1280-8	FKQ1280-10	FKQ1280-12
		FKQ1600-11	FKQ1600-12	FKQ1600-14	FKQ3200-9	FKQ3200-10
3	FKDQ Series	FKDQ320-4	FKDQ480-5	FKDQ480-6	FKDQ640-6	FKDQ640-7
		FKDQ800-5	FKDQ800-6	FKDQ800-7	FKDQ800-8	FKDQ960-7
		FKDQ960-8	FKDQ960-9	FKDQ960-10	FKDQ1120-7	FKDQ1120-8
		FKDQ1120-10	FKDQ1120-12	FKDQ1280-8	FKDQ1280-10	FKDQ1280-12
		FKDQ1600-11	FKDQ1600-12	FKDQ1600-14	FKDQ3200-9	FKDQ3200-18
4	FKDY Series	FKDY320-4	FKDY480-5	FKDY480-6	FKDY640-6	FKDY640-7
		FKDY800-5	FKDY800-6	FKDY800-7	FKDY800-8	FKDY960-7
		FKDY960-8	FKDY960-9	FKDY960-10	FKDY1120-7	FKDY1120-8
		FKDY1120-10	FKDY1120-12	FKDY1280-8	FKDY1280-10	FKDY1280-12
		FKDY1600-11	FKDY1600-12	FKDY1600-14	FKDY3200-9	FKDY3200-10

Note: The system can be custom-engineered based on specific wellhead layouts and user requirements (e.g., explosion-proof ratings and extreme cold environment adaptation).
