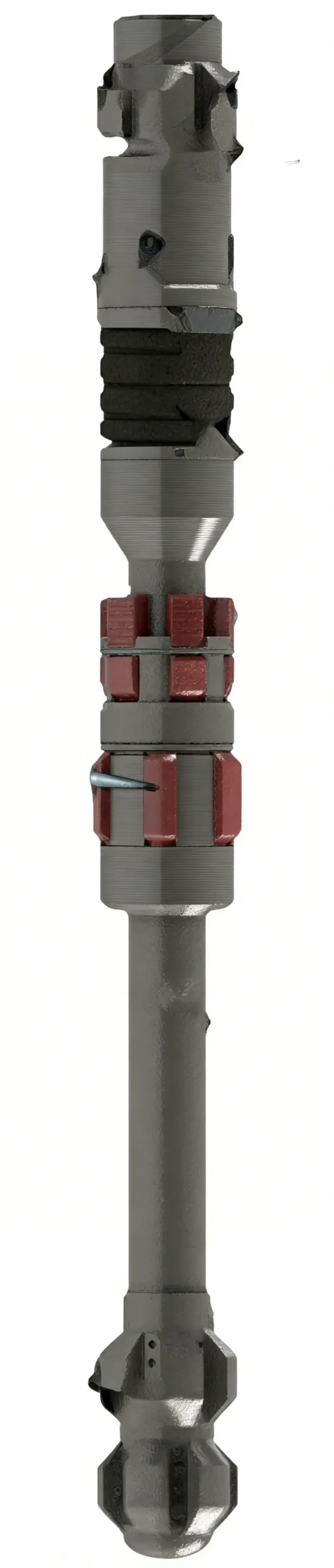

CDI211 Series Drag Frac Packer for Horizontal Well Perforating & Fracturing Tubing String

Solving poor seal verification in horizontal well fracturing.
Lift-lower setting bottom seal tool with internal balancing/reverse flow valve, realize seal verification and backwashing, repositionable for repeated setting, ideal for horizontal well perforating and fracturing tubing string drag operations.

Main Advantage & Solution

1: No seal verification function causes blind construction in fracturing;
Solution: Built-in balancing valve and reverse flow valve, realize on-site seal verification and backwashing, avoid construction failure.
2: Packer cannot be repositioned causes repeated running in hole;
Solution: Reusable and repositionable design, support repeated setting for multi-stage fracturing, improve operation efficiency.
3: Poor bottom sealing in horizontal well fracturing causes fluid channeling;
Solution: Specialized bottom seal structure, perfect for perforating and fracturing tubing string drag operations, reliable zonal isolation.

Parameter	CDI211
Max Outer Diameter	118mm
Nominal Diameter	/
Working Differential Pressure	70MPa
Working Temperature	120°C
Setting Load	110-140KN
Unload	≤60KN
Connecting Thread	2 7/8 UPTBG
Application	Horizontal well perforating/fracturing drag operations

Horizontal oil & gas well perforating and fracturing tubing string drag operation zonal isolation

Shale gas horizontal well multi-stage fracturing repeated setting zonal isolation

Horizontal well fracturing seal verification and backwashing construction

Deviated well high-pressure fracturing tubing string bottom sealing

Patented internal balancing/reverse flow valve technology, unique seal verification function in the industry
Optimized horizontal well drag structure, reduce downhole friction and running resistance
Repeated setting performance testing, ensure reliable performance for multi-stage fracturing
Professional technical team, provide on-site construction guidance for horizontal well fracturing

We provide our customers with high-quality, reliable solutions backed by robust engineering and fast response capabilities.

Get A Quote
