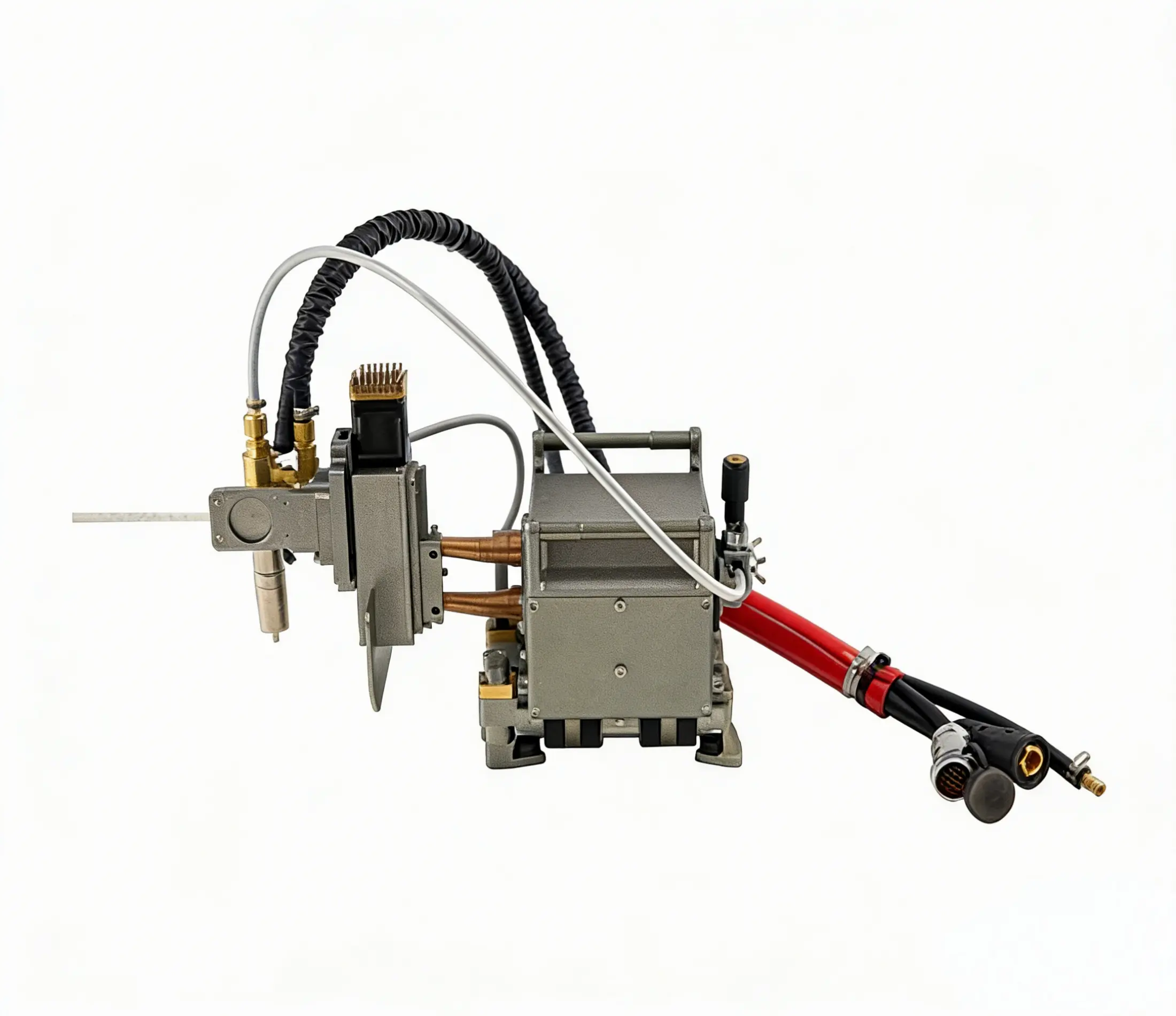

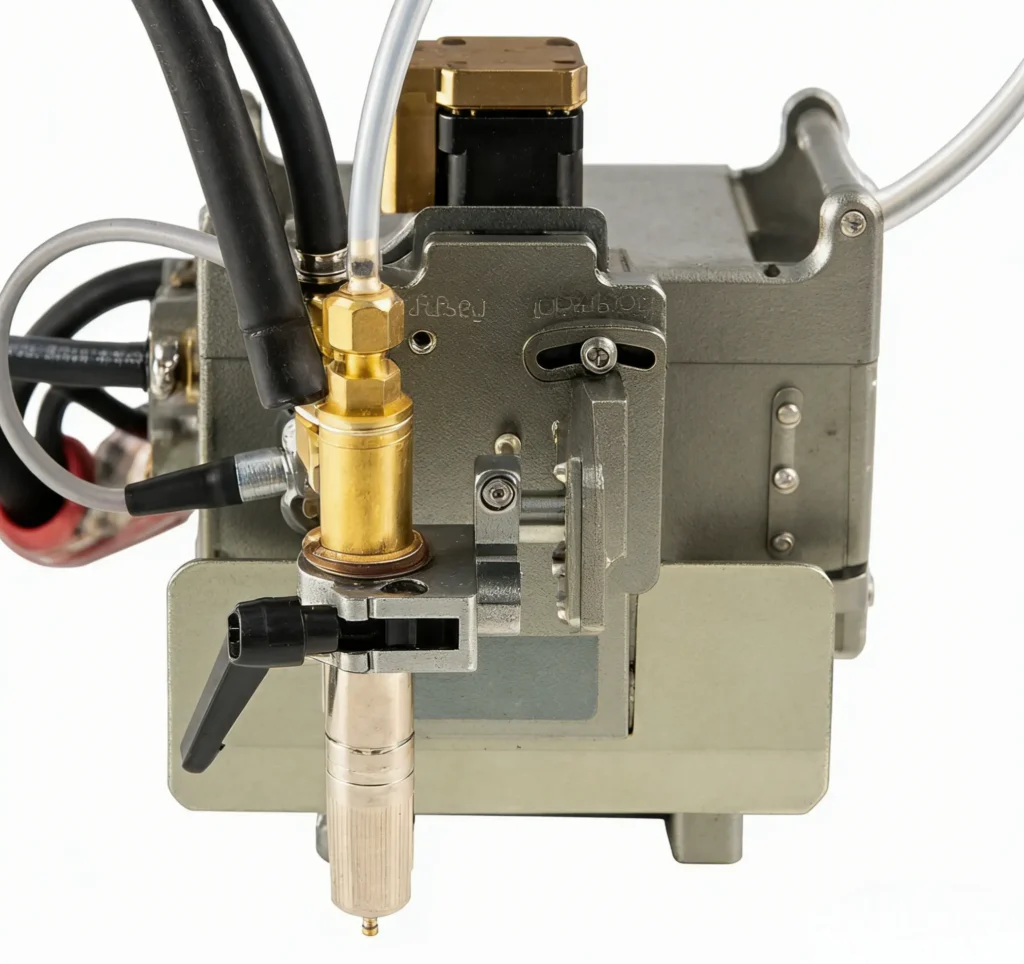

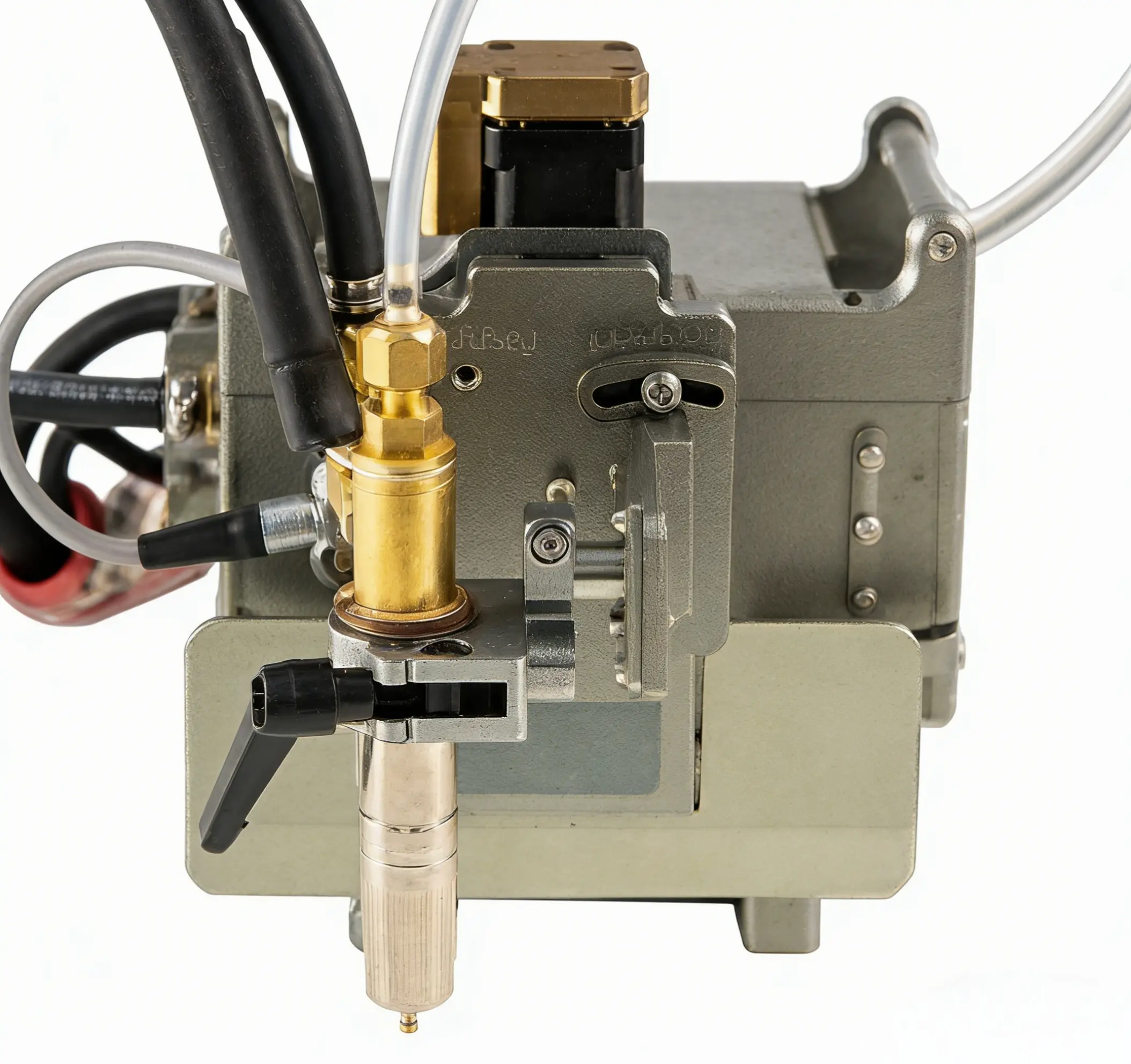

CDI3500 Workshop Prefabricated Pipe All Position Automatic Welding Machine

Solving low efficiency of manual pipe prefabrication welding Lightweight all-position automatic welder, support FAST root welding/MIG-P/TIG.
Ideal for workshop prefabricated pipe welding with high precision and non-stop operation.

Main Advantage & Solution

1: Manual workshop pipe welding has low precision and high rework rate;
Solution: 360° all-position automatic welding, 360° partition parameter auto-call (1°-10°), ensure welding consistency.
2: Heavy welding equipment is hard to move in workshop;
Solution: Lightweight design (15-16kg), compact structure, easy to operate and move for multi-station welding.
3: Single welding process cannot meet prefabrication needs;
Solution: Support FAST root welding/MIG-P/FCAW/TIG, one machine for multiple pipe welding processes.
4: Long-time welding causes heat accumulation and equipment failure;
Solution: Shielding gas forced cooling, realize non-stop all-position welding for full turns.

Parameter	Specification	Test Data/Note
Input Power	380V±10% 50/60Hz	Industrial power supply compatible
Duty Cycle	TIG:100% / MIG:60%	Continuous welding for TIG process
Max No-Load Voltage	102VDC	Stable arc initiation
Overall Dimension	450×273×230mm	Compact, save workshop space
Weight	TIG:15kg / MIG:16kg	Lightweight, easy to move
Welding Torch Swing	Flat + angular pendulum	Adapt to different weld seams
Vertical Motor Stroke	0-50mm	Precise weld seam tracking
Flat Pendulum Stroke	0-60mm	Adjustable weld width

For Pipeline Engineering Companies: Steel pipe workshop prefabrication all-position welding, small/medium pipe pre-welding

For Oilfield Equipment Manufacturers: Oil and gas pipeline prefabrication welding in workshop

For Construction & Metallurgy Enterprises: Process pipe prefabrication welding, workshop batch pipe welding

For Equipment Distributors: Workshop welding machine supply for pipe processing factories

Key Supplier of Pipeline Welding Machines to CNPC and Sinopec.
Extensive experience in long-distance oil and gas pipeline projects, including the China-Russia oil and gas pipeline and the Saudi Aramco offshore pipeline
4 invention patents & 25 utility model patents for welding technology;
ISO9001/CE/ISO14001 certified, supplied to CNPC.

We provide our customers with high-quality, reliable solutions backed by robust engineering and fast response capabilities.

If you provide specific operating conditions, we can assist you in selecting the right model.
