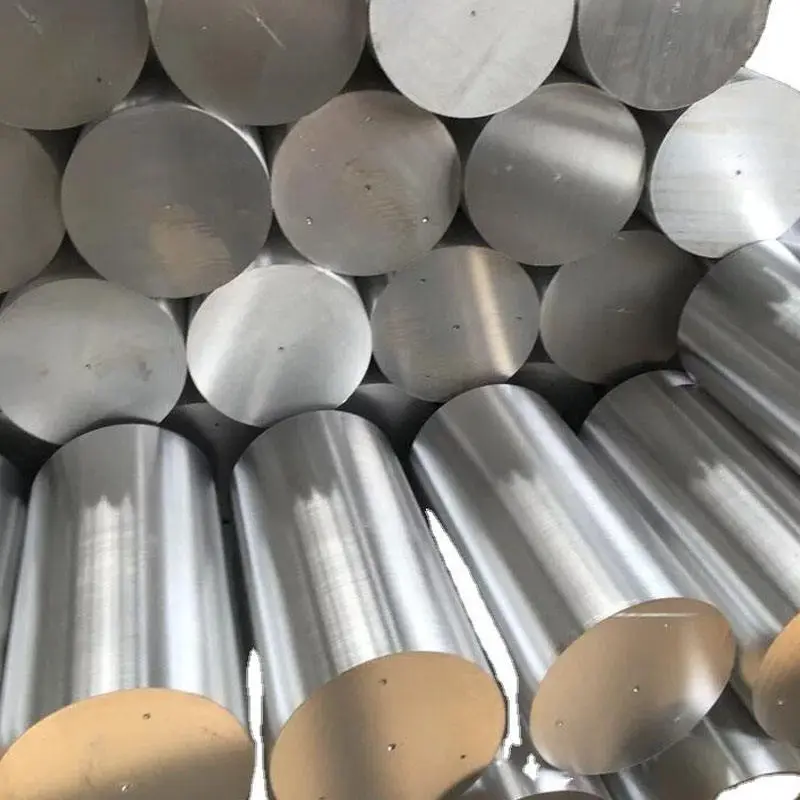

Dissolvable Magnesium Alloy Bar
A core raw material for manufacturing downhole dissolvable tools, designed for different oil and gas reservoir temperature environments. Divided into high-temperature, medium-temperature, low-temperature and high-elongation grades. It features high mechanical strength and controllable dissolution performance, supports extrusion and forging, and is widely used for dissolvable bridge plugs, sliding sleeves and other components.
Key Features
Technical Parameters
| Features | High-Temperature Grade | Medium–Temperature Grade | Low–Temperature Grade | High–Elongation Grade |
| Temperature Resistance | Up to 250°C | Up to 120°C | Up to 50°C | Up to 120°C |
| Tensile Strength | ≥ 300 MPa | ≥ 300 MPa | ≥ 260 MPa | ≥ 170 MPa |
| Yield Strength | ≥ 220 MPa | ≥ 220 MPa | ≥ 200 MPa | ≥ 100 MPa |
| Elongation | ≥ 12% | ≥ 10% | ≥ 8% | ≥ 30% |
| Standard Specifications | Custom diameter/length | Custom diameter/length | Custom diameter/length | Custom diameter/length |
