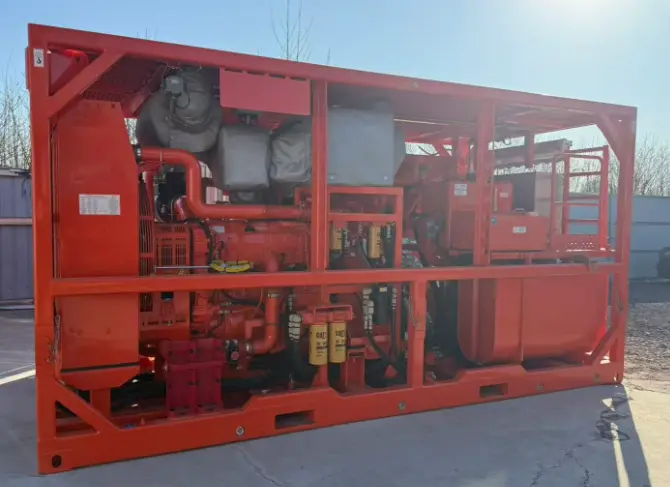

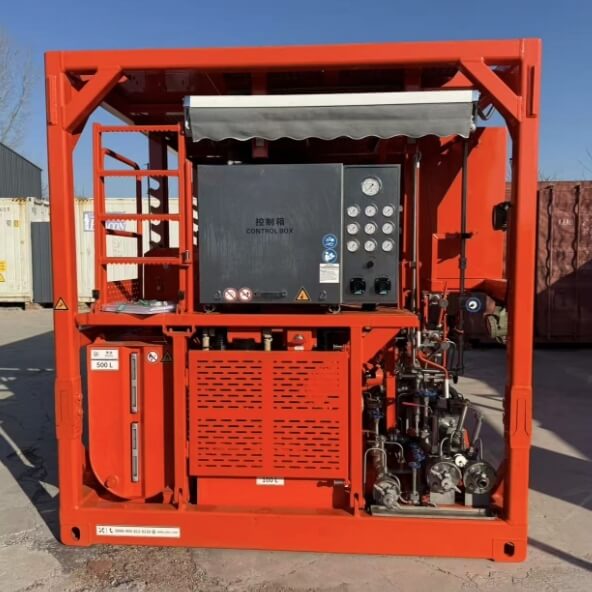

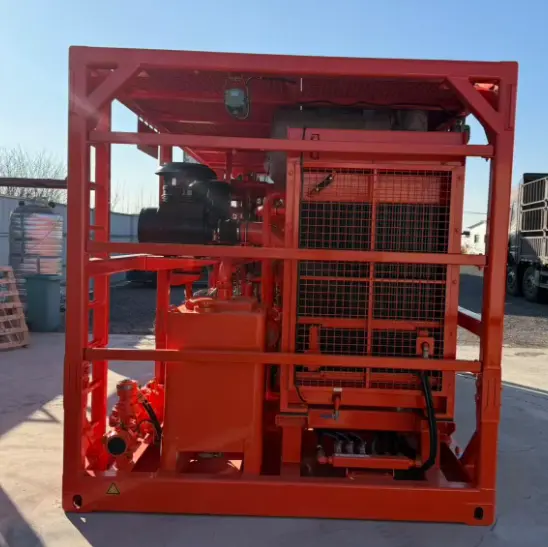

High-Efficiency Waste-Heat Recovery 180K SCFH Nitrogen Pumping Skid (10,000 psi)

Stop wasting fuel on nitrogen evaporation. Our 180K unit utilizes 100% engine waste heat for gasification, delivering 10,000 psi for heavy-duty well testing and offshore purging operations.

  • Zero Fuel Evaporation: Advanced waste-heat recovery eliminates the need for extra burners, saving up to 30% in fuel costs.
  • Extreme Durability: Proven performance in ambient temperatures from -20°C to +50°C for global oilfield reliability.
Request a Quote Downloads

Technical Parameters

ItemDescription
Max Flow180,000 SCFH (5,097 Sm³/h)
Max Pressure10,000 psi (69 MPa)

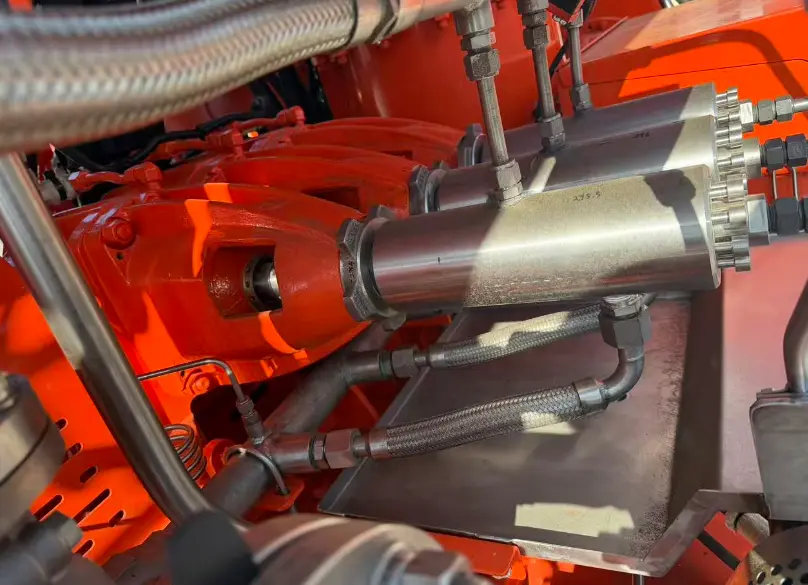

LN2 Pump3-GUPD (1.625″ Plunger)
Discharge Temp≥15°C
Dimension5000 x 2435 x 2600 mm

Application Scenarios

Engine: Caterpillar CAT C18 (765hp)
Gearbox: DURST 3PD10 (708 kW)
Vaporizer: ZFQ-180-10
Shell-and-tube typeBoost Pump: ACD AC-18

Our Advantages

Factory Strength

  • Well Test Contractors,
  • Offshore Service Companies,
  • Pipeline Commissioning Firms,
  • Equipment Rental Groups.

Cooperation Cases

API & ISO 9001 Certified; Monthly output: 5-8 units; All units undergo 100% factory load testing before shipment.

View cooperation cases

Customization Service

  • DNV/GL offshore frame customization available;
  • OEM/ODM for specific pressure ratings or engine brands.
