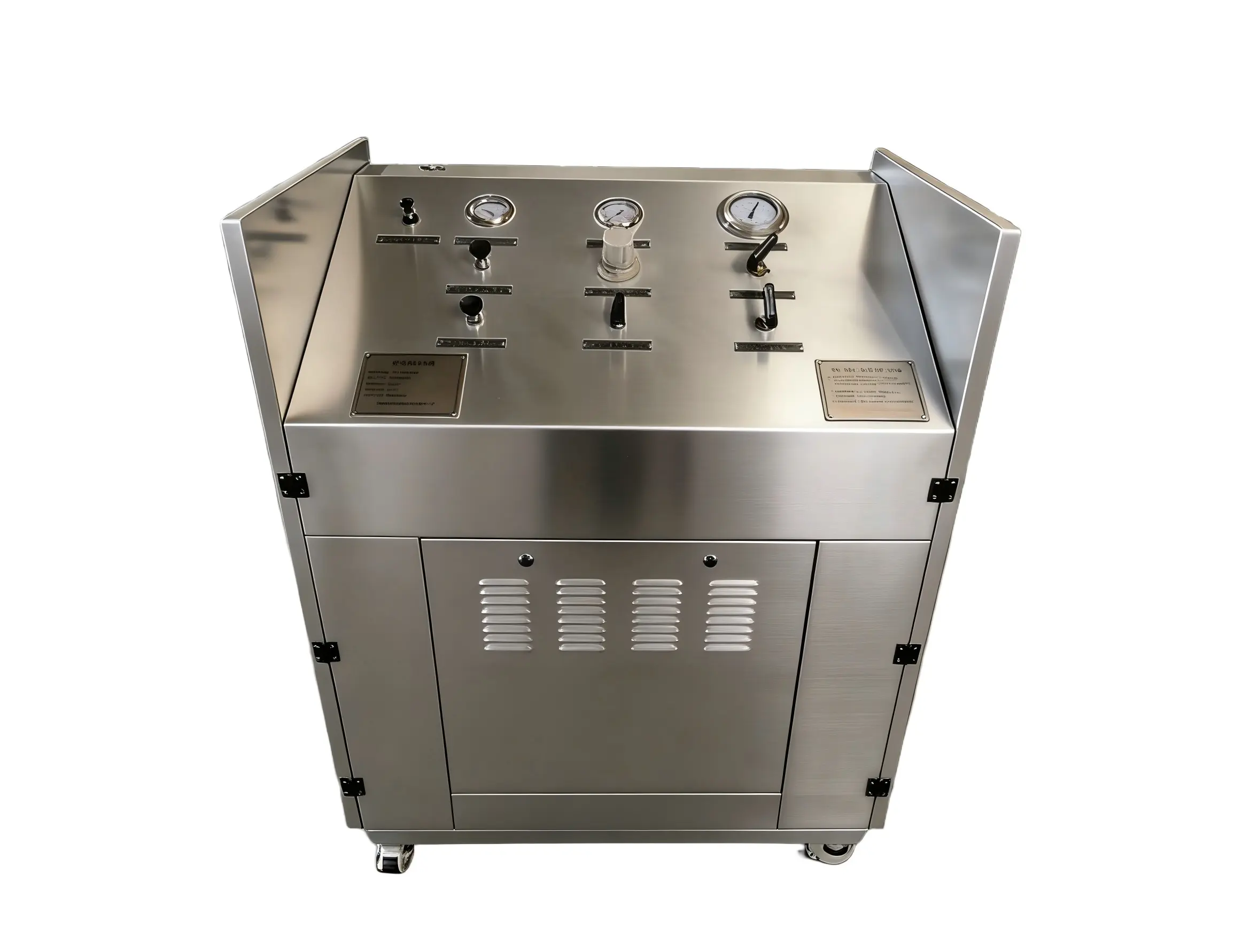

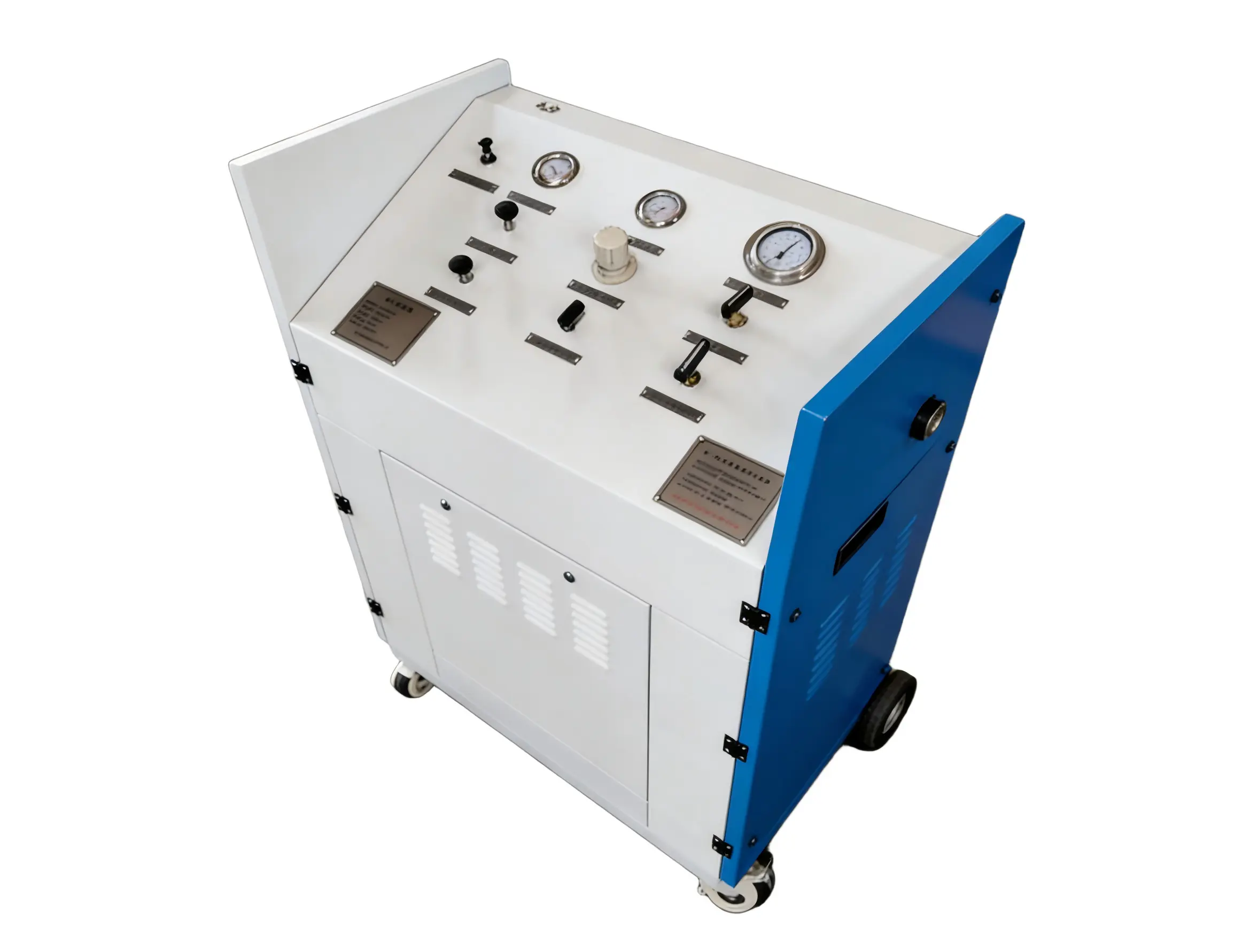

High-Pressure Dual-Stage Gas Booster System
The dual-stage gas pressure intensifier adopts a “low-pressure stage pre-boosting + high-pressure stage fine-boosting” dual-stage structure, which can boost low-pressure gas sources (e.g., 0.5MPa compressed air) to ultra-high pressure (up to 50MPa). Equipped with a pressure regulating valve and a safety valve, it is suitable for scenarios such as high-pressure airtightness testing, high-pressure gas cylinder filling, and high-pressure gas testing of aerospace components, providing a stable and continuous high-pressure gas source for high-pressure demand scenarios.
Main Advantage
Application
High-pressure gas cylinder filling (nitrogen, argon), high-pressure gas testing of aerospace components, ultra-high pressure pipeline airtightness detection, high-pressure gas testing of oilfield wellhead equipment, high-pressure valve leakage testing, ultra-high pressure gas preparation in laboratories.
All-Weather Adaptability
The equipment shell is treated with anti-corrosion coating, enabling use in humid and dusty industrial environments; equipped with a cooling fan to avoid overheating during long-term operation, supporting 24-hour continuous work, suitable for large-batch high-pressure testing or filling needs.
Technical Parameters
| Item | Specifications |
| Model | GPI-D Series (Customizable) |
| Inlet Pressure Range | 0.4~0.9MPa |
| Outlet Pressure Range | 5~50MPa (Customizable up to 80MPa) |
| Pressure Ratio | 1:12 / 1:20 / 1:40 (Optional) |
| Medium | Compressed Air, Nitrogen, Argon, Helium |
| Drive Mode | Pneumatic (0.4~0.9MPa) |
| Operating Temperature | -10℃~+55℃ |
| Material | Carbon Steel (Shell) + 316 Stainless Steel (Internal Components) |
| Safety Device | Built-in Safety Valve (Overpressure Protection) |
Customizable outlet pressure (up to 80MPa), medium compatibility (e.g., corrosive gas-resistant materials), and integrated pressure monitoring system to meet your ultra-high pressure gas boosting requirements.
