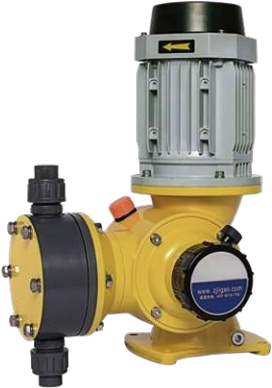

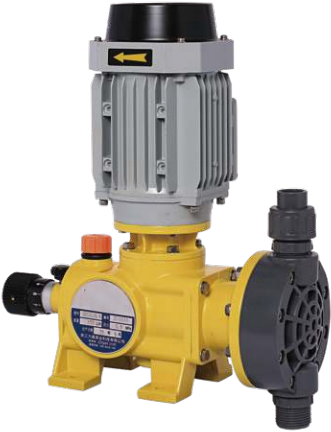

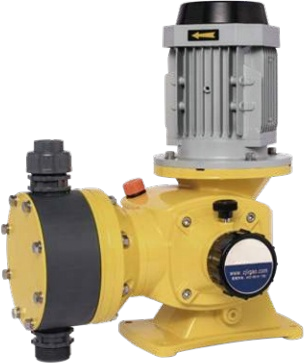

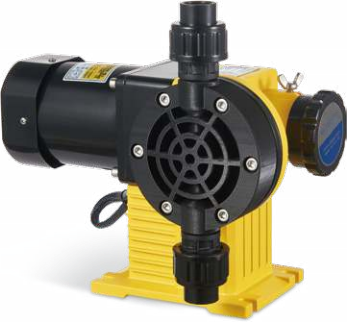

Mechanical Diaphragm Metering Pump

JBB
JLM-P
GM
GB
GB

JBB

Main Parameter:

Flow range: 15-150LPH@50Hz / 18-180LPH@60Hz
Pressure range: 4-10 Bar
Power: 380V/220V @50Hz on standard, others on request, DC12V or 24V is available
Material: PVC; PVDF; SS304; SS316; PTFE

Parameter Table:

Model	50HZ			60HZ			Pressure		Diaphragm (mm)	Power
Model	Flow (LPH)	Flow (GPH)	SPM	Flow (GPH)	Flow (LPH)	SPM	BAR	PSI	Diaphragm (mm)	Power
JBB15/1.0	15	3.9	100	4.7	18	120	10	145	60	60W
JBB25/1.0	25	6.6	100	7.9	30	120	10	145
JBB40/0.7	40	10	150	12	48	180	7	102
JBB60/0.6	60	60	100	19	72	120	6	87	84
JBB80/0.5	80	21	100	25	96	120	5	73
JBB100/0.4	100	26	150	32	120	180	4	58
JBB130/0.4	130	34		41	156		4	58
JBB150/0.3	150	39		47	180		3	43

Connection:

Model	PVC	PVDF/PTFE	SS304/316
JBB15–JBB40	6*9 mm hose	RC1/2″ F	10*16mm welding union
JBB60–JBB150	DN15 glue union	RC1/2″ F	10*16mm welding union

Note:

10*14mm hose connection is also optional for JBB 60- JBB 150.

JLM-P

Main Parameter:

Flow range: 15-180LPH@50Hz / 18-216LPH@60Hz
Pressure range: 5-8 Bar
Power: 380V@50Hz on standard, others on request
Material: PVC; PVDF; SS304; SS316; PTFE

Parameter Table:

Model	50HZ			60HZ			Pressure		Diaphragm (mm)	Power
Model	Flow (LPH)	Flow (GPH)	SPM	Flow (GPH)	Flow (LPH)	SPM	BAR	PSI	Diaphragm (mm)	Power
KD15/0.8	15	3.9	48	4.7	18	58	8	116	60	180W
KD20/0.8	20	5.2	48	6	24	58	8	116
KD40/0.8	40	10.5	96	12	48	115	8	116
KD60/0.6	60	15.7	48	18	72	58	6	87	95
KD80/0.6	80	21	96	25	96	115	6	87
KD120/0.5	120	31.5	96	37	144		5	73
KD180/0.5	180	47.3	144	56	216		5	73

Connection:

Model	PVC	PVDF/PTFE	SS304/316
JBB15–JBB40	6*9 mm hose	RC1/2″ F	10*16mm welding union
JBB60–JBB150	DN15 glue union	RC1/2″ F	10*16mm welding union

GM

Main Parameter:

Flow range: 10-500LPH@50Hz / 12-600LPH@60Hz
Pressure range: 5-12 Bar
Power: 380V@50Hz on standard, others on request
Material: PVC; PVDF; SS304; SS316; PTFE

Parameter Table:

Model	50HZ			60HZ			Pressure		Diaphragm (mm)	Power
Model	Flow (LPH)	Flow (GPH)	SPM	Flow (GPH)	Flow (LPH)	SPM	BAR	PSI	Diaphragm (mm)	Power
GM10/1.2	10	2.6	48	3.1	12	58	12	174	60	0.37KW
GM25/1.0	25	6.6	48	7.9	30	58	10	145
GM50/1.0	50	13	96	16	60	115	10	145
GM90/0.7	90	23	48	28	108	58	7	102	112
GM120/0.7	120	32	48	38	144	58	7	102
GM170/0.7	170	45	96	54	204	115	7	102
GM240/0.5	240	63	96	76	288	115	5	73
GM330/0.5	330	86	144	104	396	173	5	73
GM400/0.5	400	105		126	480		5	73
GM500/0.5	500	131		157	600		5	73

Connection:

Model	PVC	PVDF/PTFE	SS304/316
GM10–GM25	6*9 mm PE hose	RC1/2″ F	10*16mm welding union
GM50–GM120	DN15 glue union	RC1/2″ F	10*16mm welding union
GM170–GM330	DN15 glue union	RC1/2″ F	15*22mm welding union
GM400–GM500	DN15 glue union	RC3/4″ F	15*22mm welding union

GB

Main Parameter:

Flow range: 240-1800LPH@50Hz / 288-2160LPH@60Hz
Pressure range: 3-10 Bar
Power: 380V@50Hz on standard, others on request
Material: PVC; PVDF; SS304; SS316; PTFE

Parameter Table:

Model	50HZ			60HZ			Pressure		Diaphragm (mm)	Power
Model	Flow (LPH)	Flow (GPH)	SPM	Flow (GPH)	Flow (LPH)	SPM	BAR	PSI	Diaphragm (mm)	Power
GB240/1.0	240	63	48	75	288	58	10	145	148	0.75KW
GB320/1.0	320	84	48	101	384	58	10	145
GB500/1.0	500	131	96	157	600	115	10	145
GB680/0.7	680	179	96	214	816	115	7	102
GB760/0.5	760	200	144	240	912	173	5	73
GB1000/0.4	1000	264	144	315	1200	173	4	58
GB1200/0.4	1200	315	96	379	1440	115	4	58	185	1.1KW
GB1600/0.3	1600	421	144	505	1920	173	3	44
GB1800/0.3	1800	476	144	571	2160	173	3	44

Connection:

Model	PVC	PVDF	PTFE	SS304/316
GB240–GB1000	DN25 glue union	DN25 PVC Flange	DN25 PVC Flange	RC 1″ F
GB1200–GB1800	DN40 glue union	DN40 PVC Flange	DN40 PVC Flange	RC 1.5″ F

GB

Main Parameter:

Flow range: 1360-3600LPH@50Hz / 1632-4320LPH@60Hz
Pressure range: 3-5 Bar
Power: 380V@50Hz on standard, others on request
Material: PVC; PVDF; SS304; SS316; PTFE

Parameter Table:

Model	50HZ			60HZ			Pressure		Diaphragm (mm)	Power
Model	Flow (LPH)	Flow (GPH)	SPM	Flow (GPH)	Flow (LPH)	SPM	BAR	PSI	Diaphragm (mm)	Power
GB-S1360/0.7	1360	357	96	429	1632	115	7	102	148	1.1KW
GB-S1500/0.5	1500	394	144	473	1800	173	5	73
GB-S2000/0.4	2000	528	144	634	2400	173	4	58
GB-S2400/0.4	2400	631	96	757	2880	115	4	58	185
GB-S3200/0.3	3200	842	144	1010	3840	173	3	44
GB-S3600/0.3	3600	951	144	1141	4320	173	3	44

Connection:

Model	PVC	PVDF	PTFE	SS304/316
GB-S1360~2000	DN25 glue union	RC 1″ F	DN25 PVC Flange	RC 1″ F
GB-S2800~3600	DN40 glue union	RC 1.5″ F	DN40 PVC Flange	RC 1.5″ F
