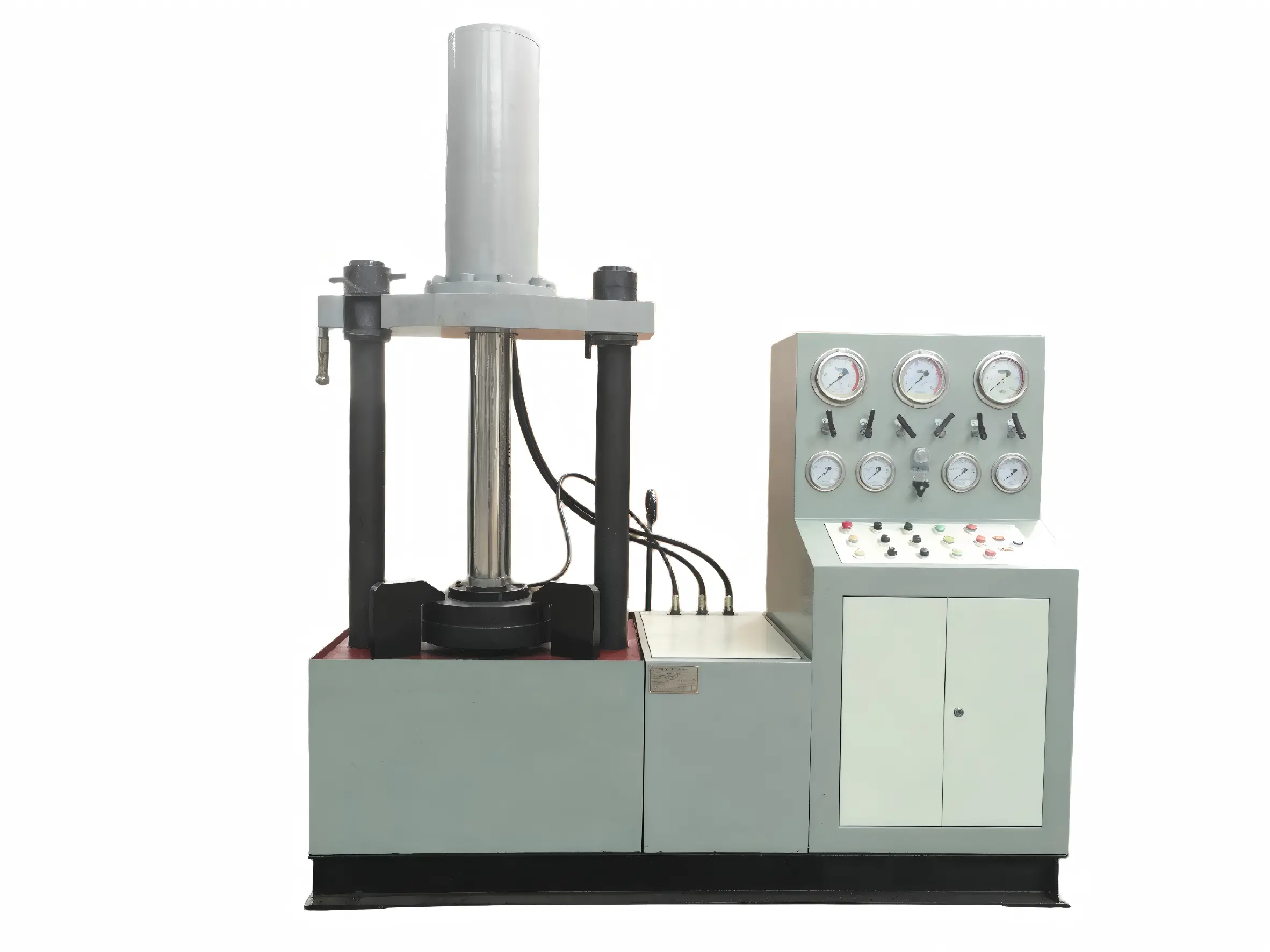

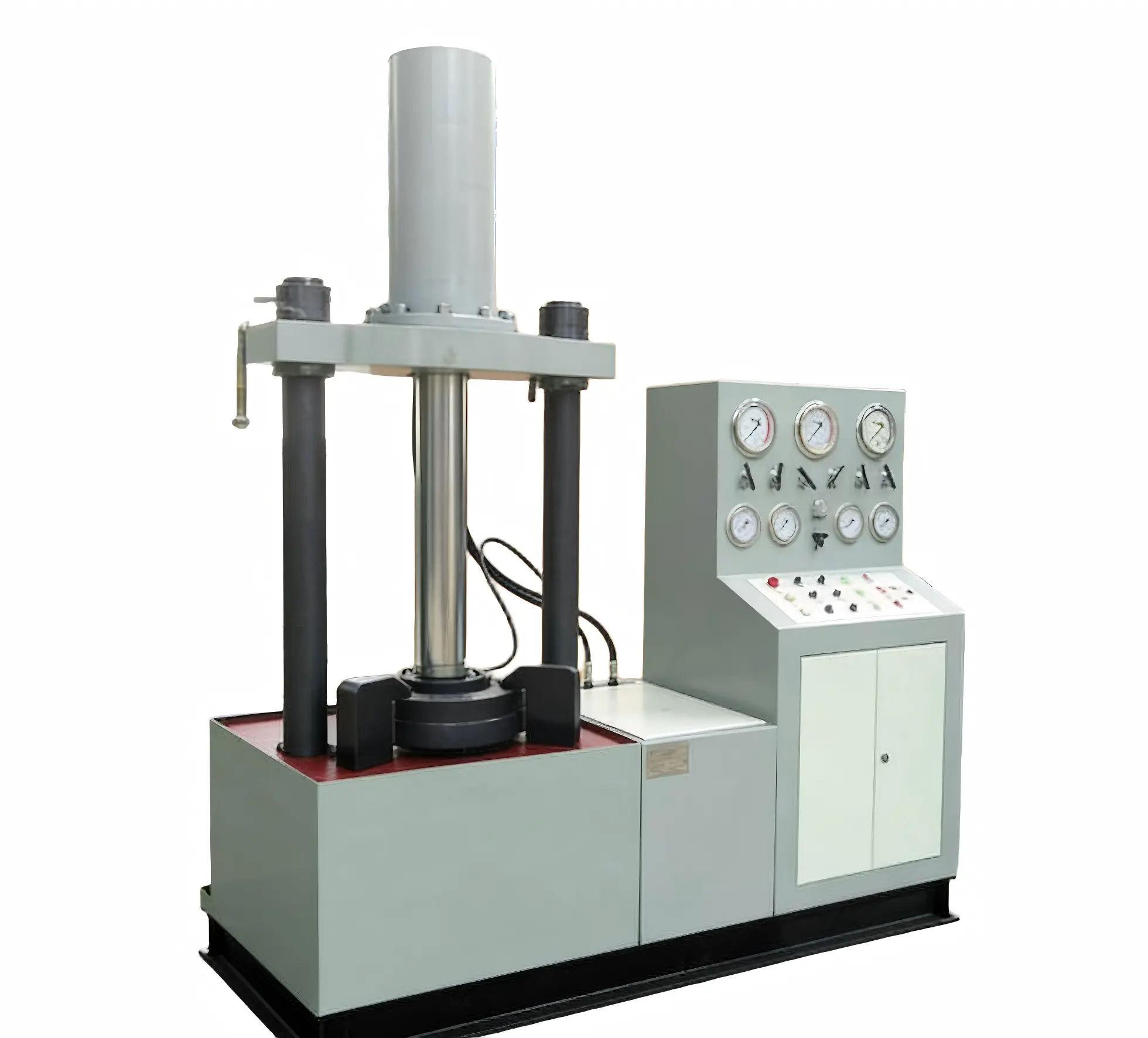

Multi-Station Vertical Valve Test Bench for Small Bore Flange Valves

Vertical test bench designed for small straight-through flanged valves with compact space-saving structure. Adopts top hydraulic clamping, customizable top-and-hold structure for safety valve testing. Optional horizontally rotatable upper beam for easy loading and unloading of tall valves.

Request a Quote Downloads

Main Advantage

  • Compact vertical top-clamping layout saves workshop space, ideal for batch testing of small-bore valves in limited area.
  • Stable operation and easy loading/unloading, suitable for threaded, welded and small flanged valves.
  • Stable pressure holding, low failure rate and simple maintenance.

Application

Small valve workshop, plumbing hardware factory, maintenance center, small-bore valve production line, residential water supply valve testing, agricultural irrigation valve inspection, bathroom hardware valve, auto parts valve, small chemical equipment valve testing.

All-Weather Adaptability

Compact and lightweight layout, flexible placement on ordinary workshop floor without foundation; low energy consumption and low noise, perfect for production line side matching.

Technical Parameters

ItemSpecifications
Test Pressure1.6–32MPa
Applicable DiameterDN20–DN300mm
Clamping TypeTop hydraulic clamping
Test MediaWater, Air, Oil
StructureVertical compact space-saving type

Custom rotatable beam, multi-station layout and clamping travel can be tailored for small valve batch production.
