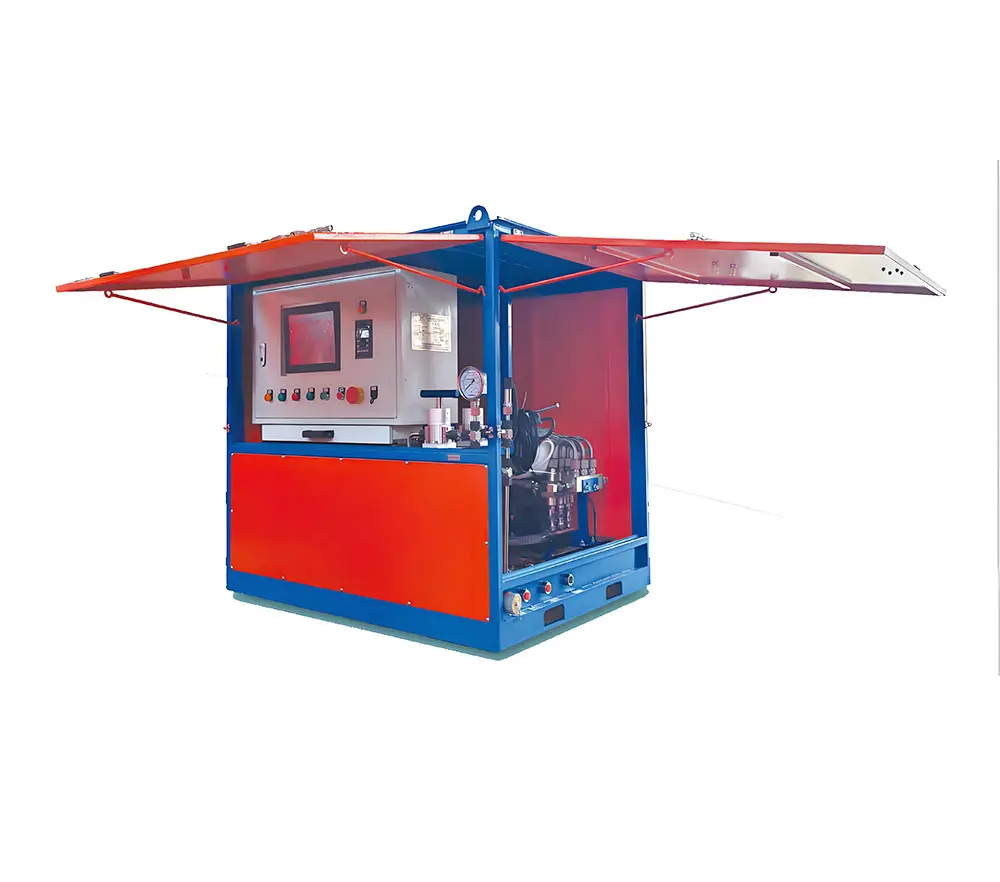

Oilfield Pressure Testing System (Electric / Pneumatic)

This system offers both electric and pneumatic pressure testing solutions, covering full operational scenarios from workshops to remote well sites. The electric system focuses on high-flow, high-efficiency automated testing and is portable enough to be transported to well sites via pickup trucks. The pneumatic system, with its more compact footprint and intrinsically safe design, is the ideal choice for offshore drilling platforms and various explosion-proof environments.

Request a Quote Downloads

System Configuration

  • Versatile Power Modules: Available with high-power electric pump units (VFD-driven) or compact pneumatic booster pump sets.
  • Highly Reliable Valves: Equipped with long-service-life high-pressure plate valves, offering significantly longer maintenance intervals than traditional needle valves.
  • Integrated Skid Design: Features 304 stainless steel tanks, filtration systems, and control cabinets with reinforced designs for offshore platforms and mobile vehicle transport.
  • Flexible Control Interface: Options include remote dual-screen consoles (Electric) or portable control panels (Pneumatic), supporting various data acquisition methods.

Key Features

  • Ultimate Portability & Adaptability: Optimized footprint for pneumatic models fits offshore platform constraints perfectly; electric models are pickup-ready for fast, on-site testing.
  • Efficient Multi-Channel Operation: Supports 1 to 4 independent test loops, drastically reducing inspection cycles for BOPs, manifolds, and coiled tubing.
  • Safety Warning System: Integrated with overpressure protection, intelligent risk alerts, and automatic pressure relief to ensure personnel and equipment safety.
  • Patented Anti-Seismic Tech: Features patented anti-seismic high-pressure connections for leak-free performance under severe operating conditions.

Technical Specifications

FeaturesElectric Drive SystemPneumatic Drive System
ModelCDI-ETS-200CDI-ATS-140
Working Pressure0 – 200 MPa (Customizable)0 – 140 MPa (Customizable)
Power Source380V/50Hz (20-25 KW)0.7-0.8 MPa Compressed Air
Max Flow Rate950 L/hHigh-flow filling / Precise boosting
Control MethodPLC + VFD Intelligent ControlPneumatic or Computerized Control
Primary ApplicationWorkshop / Mobile Pickup TruckOffshore Platforms / Hazardous Zones
Recording TypeDigital Test Reports / Cloud DataChart Recorder / Digital System
Main ComponentsSiemens, Schneider, etc.High-durability Plate Valves
Tank Material304 Stainless Steel304 Stainless Steel
Dimensions (mm)2806 * 1200 * 1600 (Ref.)1000 * 800 * 1640 (Ref.)
