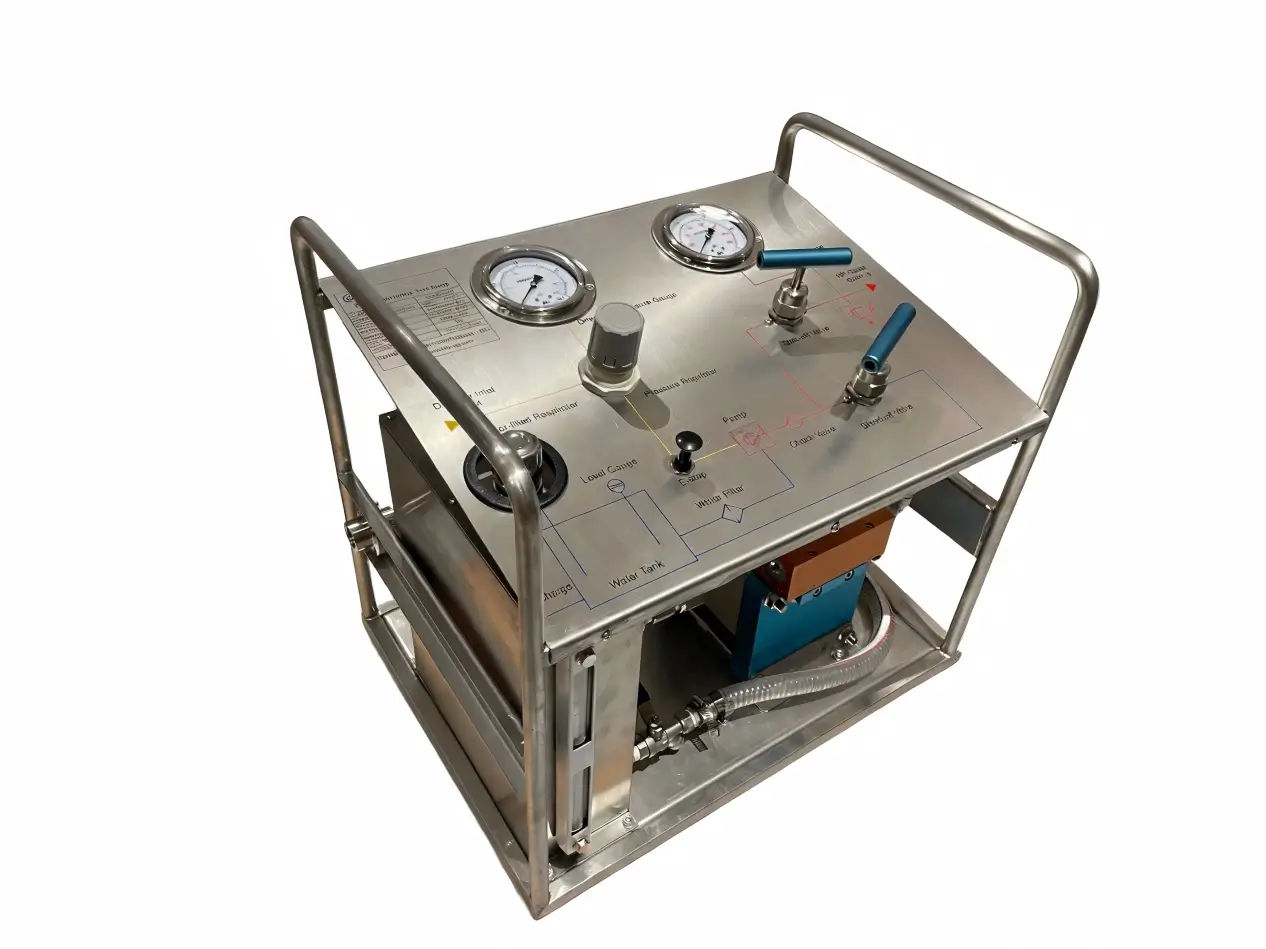

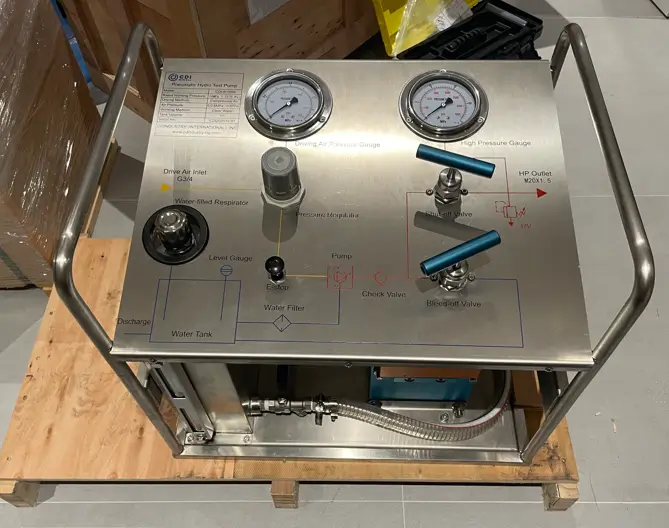

Portable Air-Driven High-Pressure Test Unit

This unit is a compact air-driven high-pressure test system designed for general industrial pressure testing. It features true portability, automatic pressure locking and zero-energy pressure holding. No external power supply is required. It is widely applied to on-site field maintenance, valve testing, pipeline inspection and laboratory routine pressure tests, serving as an optimal portable high-pressure testing solution for general industries.

Downloads

Main Advantage & Solution

1.True portability: Lightweight design with handle, easy to carry for on-site repairs and valve testing.
2.Energy-saving self-locking: Reaches set pressure and locks automatically; no continuous air supply needed.
3.Cost-effective & durable: Simple structure, low maintenance, and reliable for long-term regular use.

Technical Parameters

Item	Specifications
Model	CDI-P Series (Customizable)
Pressure Range	0–290MPa / 0–42000 psi
Driving Mode	Compressed air driven
Test Media	Water, Emulsion, Hydraulic Oil, Glycol
Feature	Self-locking pressure holding, zero energy consumption
Structure	Portable handle type, compact integrated design

We provide one-on-one personalized layout and pressure range customization to match your on-site testing requirements.

Request a Custom Proposal

Application Scenarios

Valve pressure testing
pipe line test
routine vessel inspection
on-site maintenance
general machinery hydraulic test
portable high-pressure tool drive.

Our Advantages

Factory Strength

Capacity：Annual output of 1,800–2,200 units, fully covering standard, ultra-high-precision and high-flow series, with stable delivery cycle for both standard and customized orders.
Certifications：Holds ISO9001, ISO14001, OHSAS18001 and API certification, ensuring strict quality compliance with international standards.
Technical Strength: We possess a professional R&D team of over 20 core researchers, all with more than 5 years of experience in high-voltage testing equipment development, enabling us to provide customized design and technical optimization.
