Portable Pneumatic Hydrostatic Test Unit with Data-Acquisition-Integrated

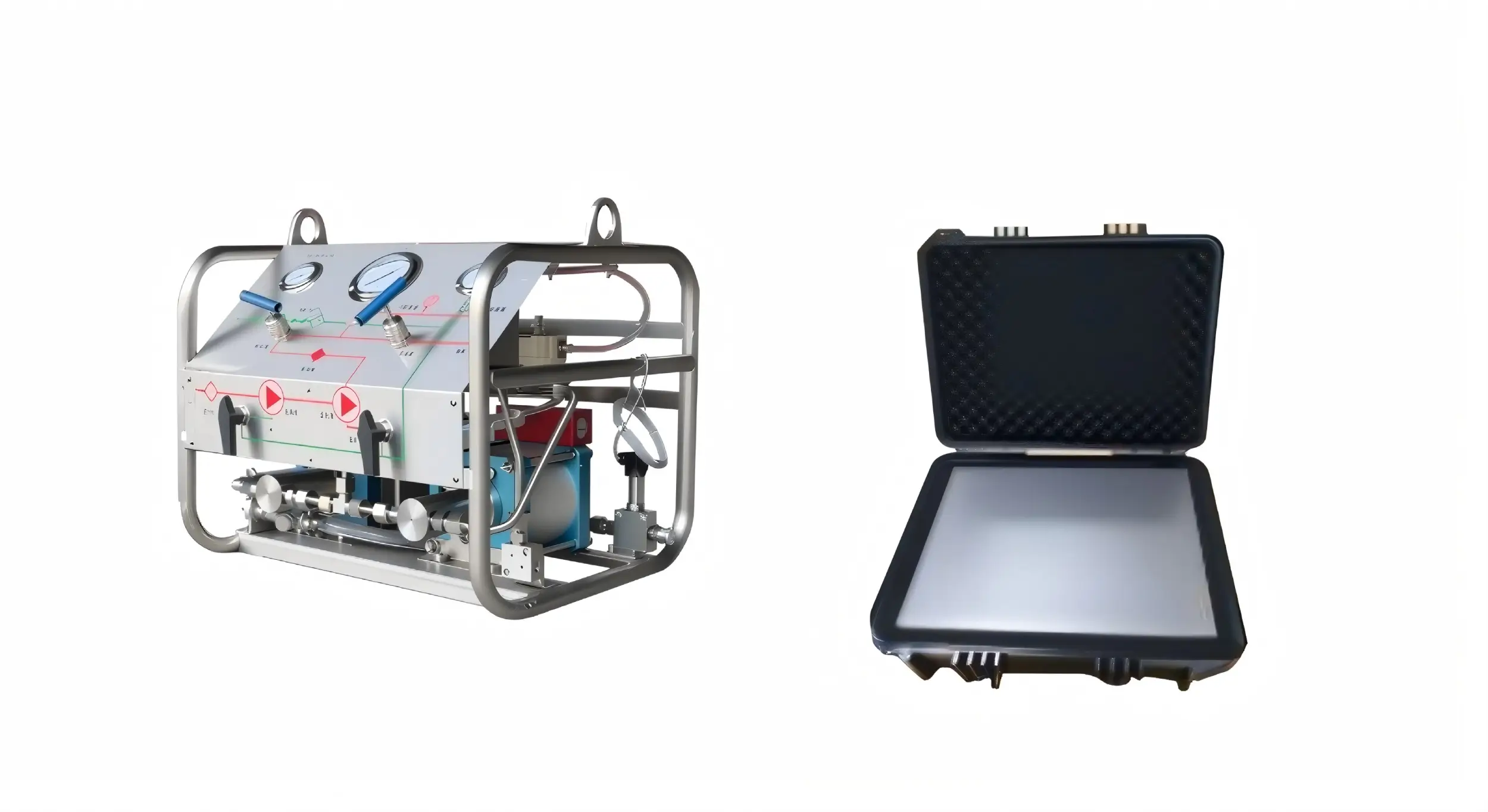

This portable pneumatic hydrostatic test unit is integrated with laptop high-precision data acquisition system, with max pressure up to 250MPa. It collects real-time pressure data, automatically generates pressure curves and test reports, supporting data storage, export and printing. It meets high-precision testing and quality traceability requirements for BOP, Christmas trees, wellhead equipment and subsea pipeline pre-lay testing.

Downloads

Core Advantage

Professional data acquisition system for real-time recording, automatic curve report generation, data storage, printing and full traceability.
Seismic-resistant high-pressure piping ensures stable operation under harsh field conditions.
Stainless steel tapered-face sealing for all high-pressure ports, maintaining stable tightness under 250MPa ultra-high pressure.
Support manual / fully automatic dual control modes to adapt to different testing processes.

Application

High-precision BOP testing, oil & gas trunk pipeline testing, subsea pipeline pre-lay hydrostatic test, batch inspection of oilfield valves, Christmas tree & wellhead pressure testing, drilling platform complete equipment calibration.

All-Weather & Mobility

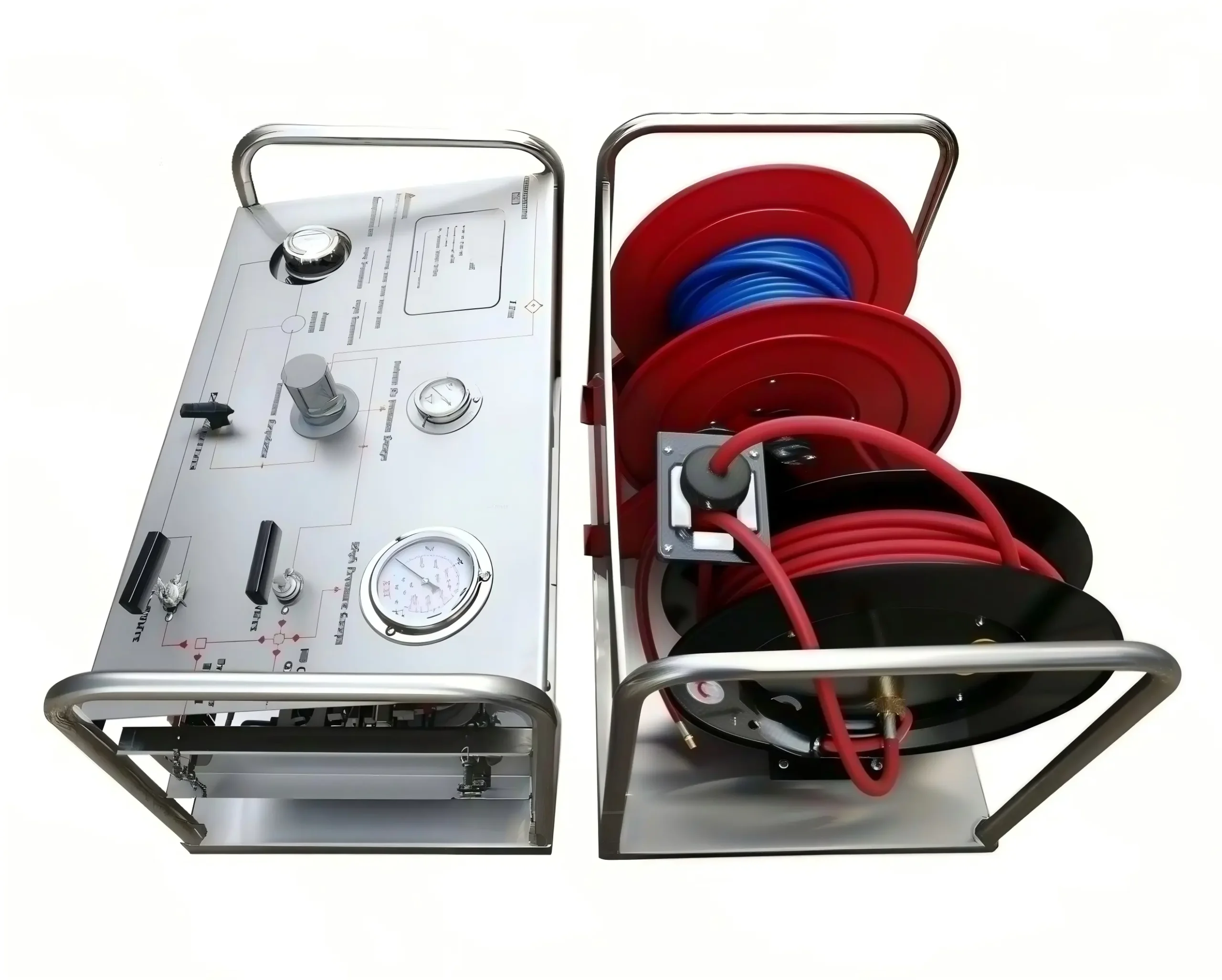

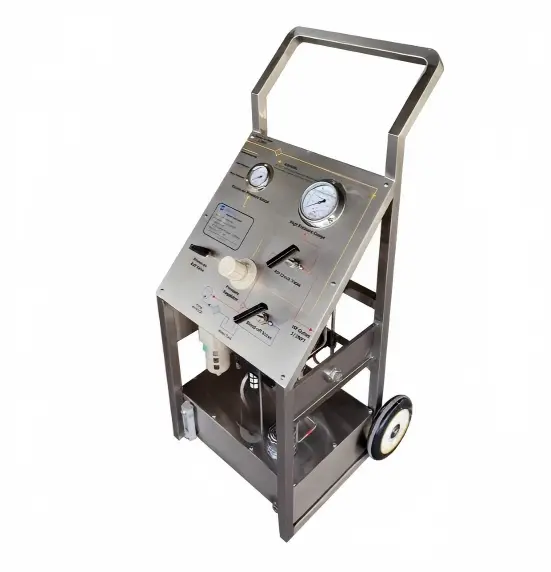

Air-driven explosion-proof design fits oilfield, offshore and chemical explosive areas. Integrated data system supports one-touch automatic testing; optional trolley or hose reel skid facilitates site transfer and long-term fixed operation.

Technical Parameters

Item	Specifications
Model	Pneumatic Unit with Data Acquisition
Pressure Range	0–250 MPa
Control Mode	Manual / Fully automatic
Data System	Laptop-based real-time acquisition & report generation
Pipeline	Seismic-resistant ultra-high pressure piping
Sealing	Stainless steel tapered-face seal
