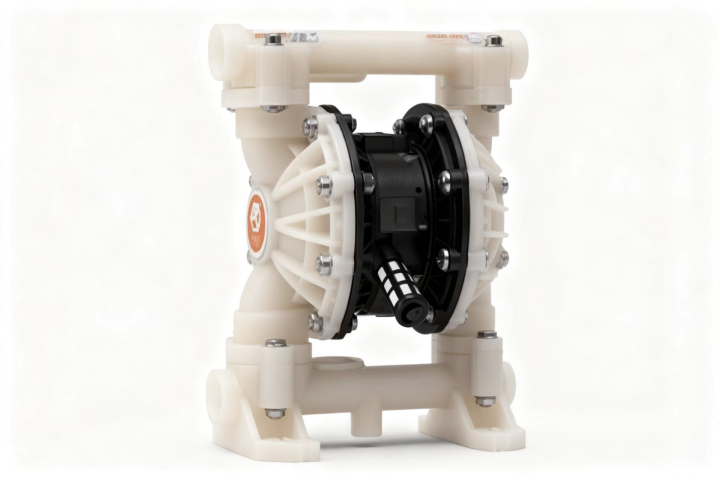

QBY3-25—The third-generation diaphragm pump suitable for various specifications
Material: Plastic / Fluorinated plastic
Main Parameter
| Parameter | Range |
| Max Flow | 15gpm(57lpm) |
| Max Working Pressure | 100psi(0.7Mpa,7bar) |
| Fluid Inlet Size | 3/4in.bsp(f)/ 1 in.bsp(f) |
| Fluid Outlet Size | 3/4in.bsp(f)/ 1 in.bsp(f) |
| Air Inlet Size | 1/4in.bsp(f) |
| Max Suction Height(Dry or Wet) | 15ft.(4.5m) |
| Max Permitted Grain | 3/32in.(2.5mm) |
| Every Reciprocating Flow | 0.04gal.(0.15L) |
| Max.Reciprocating Speed | 400cpm |
