1100 Series Compact Mechanical Spring Starter (4L–8L Engine Range)

Model Positioning

Engineered specifically as a precision, high-efficiency mechanical starter for mid-range (4L–8L) multi-cylinder diesel engines, the 1100 Series sets the benchmark for compact emergency cranking. Designed to replace standard electric starter motors, or to be installed alongside them (twin-starter flywheel housing required; custom dual-lug housings available), on marine auxiliary engines and standby generators, and to provide spark-free starting on Oil & Gas engines, it offers a lightweight yet powerful mechanical energy storage solution that guarantees 100% black-start readiness without electrical components.

Series-Specific Innovations & Highlights

Ergonomic Low-Effort Winding: Features an optimized reduction gear ratio that minimizes manual hand-cranking effort, allowing a single operator to fully charge the starter quickly and smoothly.
High Torque-to-Weight Ratio: Compact housing design engineered for tight engine compartments without sacrificing instantaneous torque output.
Instant Dual-Direction Adaptability: Flexible flange configuration supporting both clockwise and counter-clockwise engine rotation demands.
Spark-Free Operation: Zero electrical spark hazard, suited to oilfield, mining and chemical pump setups.

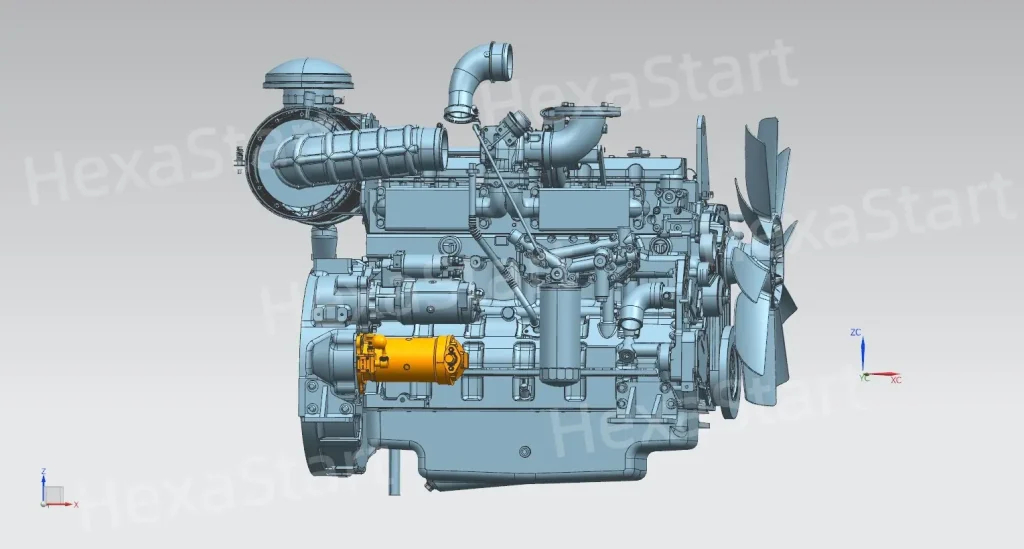

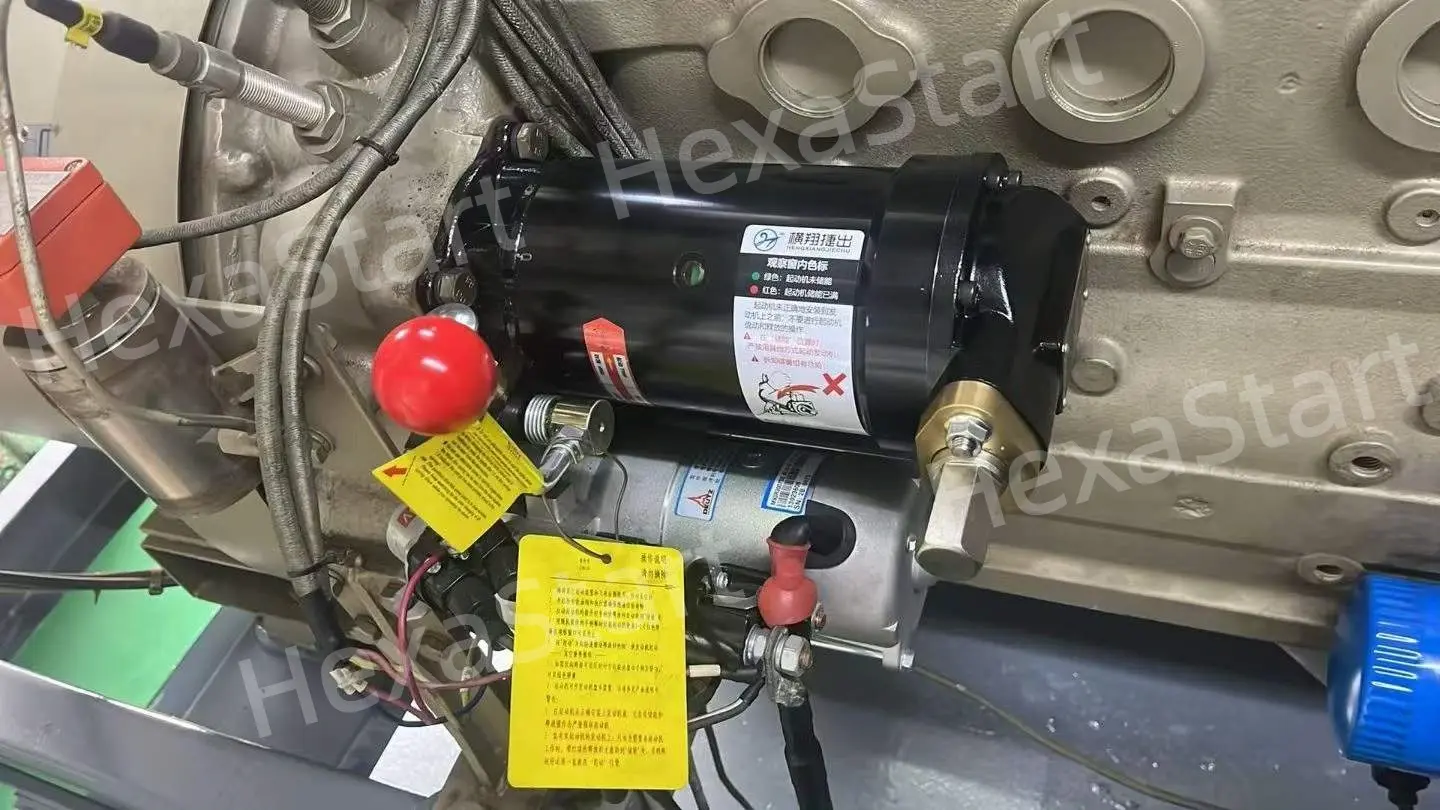

Flexible SAE Installation: Precision-machined SAE flange mounting allows the starter to replace a standard electric starter, or to be fitted alongside one on engines with a twin-starter flywheel housing.

Engine Application Matrix

Field-proven across mid-capacity (4L–8L) diesel engines from leading global and regional manufacturers, including Cummins, Weichai, Yuchai, Shangchai, Wudong, CAT, Beijing Internal Combustion Engine, Huabei Diesel Engine, Hebei Diesel Engine, and VOLVO.

Technical Specifications

Model Series	1100 Series
Engine Displacement Range	4L to 8L
Charging Mechanism	Manual Crank Storage (High-Stress Disc Spring Assembly)
Flange Standards	SAE 1 / SAE 2 / SAE 3
Rotation Option	Clockwise (CW) / Counter-Clockwise (CCW)
Operating Environment	High and low temperature tolerance

View Specs

Parameters

Spring Starter Series		1100 Series
		HD
		1100
Flange	SAE#	1,2&3
Engine Displacement	Liters (L)/cylinder & Max cylinder numbers	1&6
		1.2&6

Max pinion torque	Nm	126
Max winding torque	Nm	100
Weight	kg	18
Turns to fully wind	turns	2+8
L	mm	280
A	mm	117
B	mm	130
