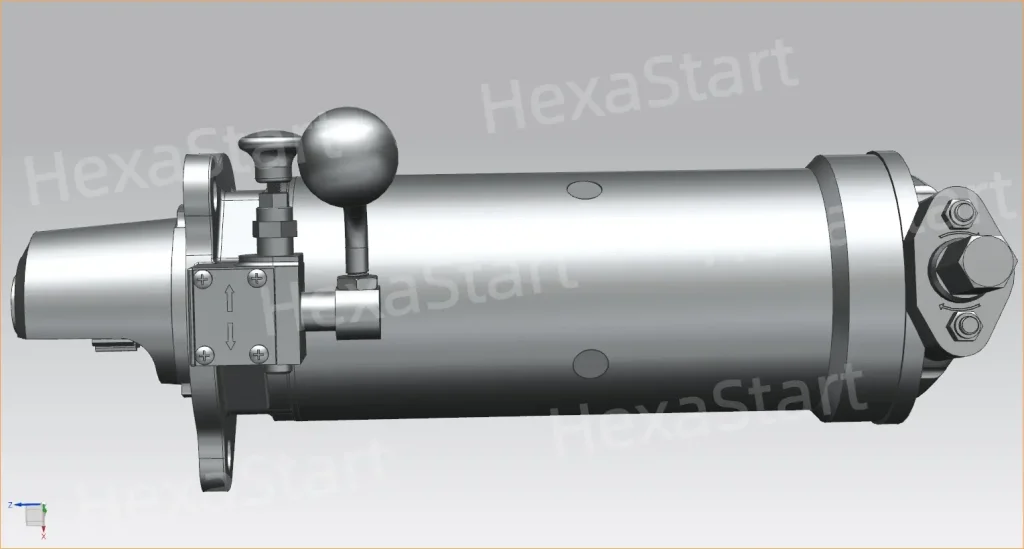

4100 Series Heavy-Fleet Mechanical Spring Starter (12L–18L Engine Range)

Model Positioning

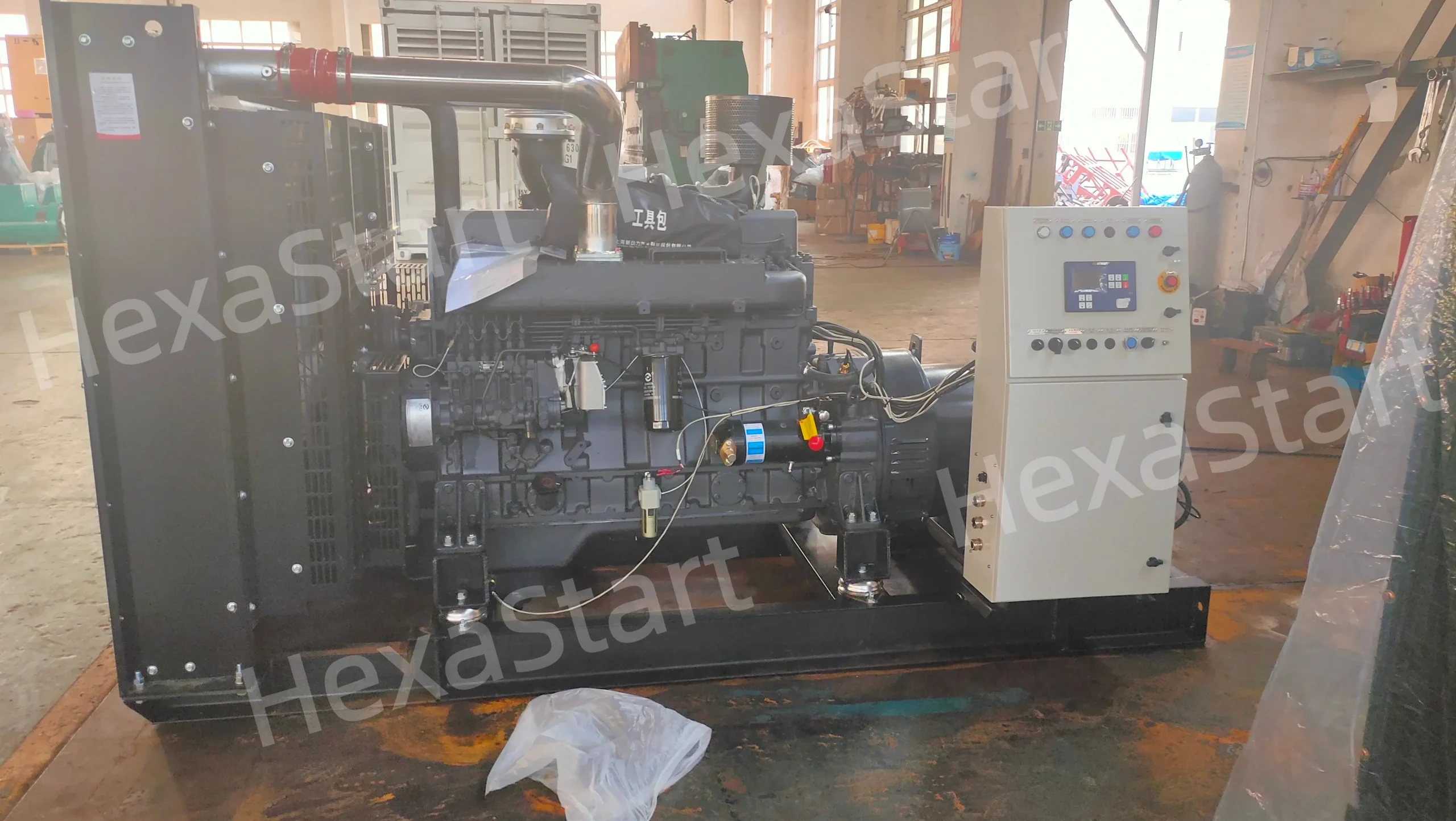

Specially calibrated for primary heavy-duty diesel engines ranging from 12.0L to 18.0L, the 4100 Series serves as an industry benchmark for core heavy-fleet emergency cranking. Engineered for standby generator sets, fire pump sets and marine auxiliary systems, the 4100 Series combines rugged structural reinforcement with precision torque discharge to handle severe vibration, thermal shocks, and frequent testing cycles in mission-critical operations.

Series-Specific Innovations & Highlights

Heavy-Fleet Power Calibration: Engineered specifically to meet the high compression torque requirements of 12–18L flagship diesel platforms.
High-Duty Cycle Fatigue Resistance: Built with high-strength fatigue-resistant spring steel and reinforced planet gear drives to endure frequent routine testing and heavy-vibration environments.
Uncompromised Zero-Voltage Starting: Pure mechanical spring energy storage delivers reliable black-start capability during grid loss, dead battery scenarios, or blown electrical fuses.
Spark-Free Operation: Zero electrical spark hazard, suited to offshore oil rig, underground mining and chemical processing facility setups.

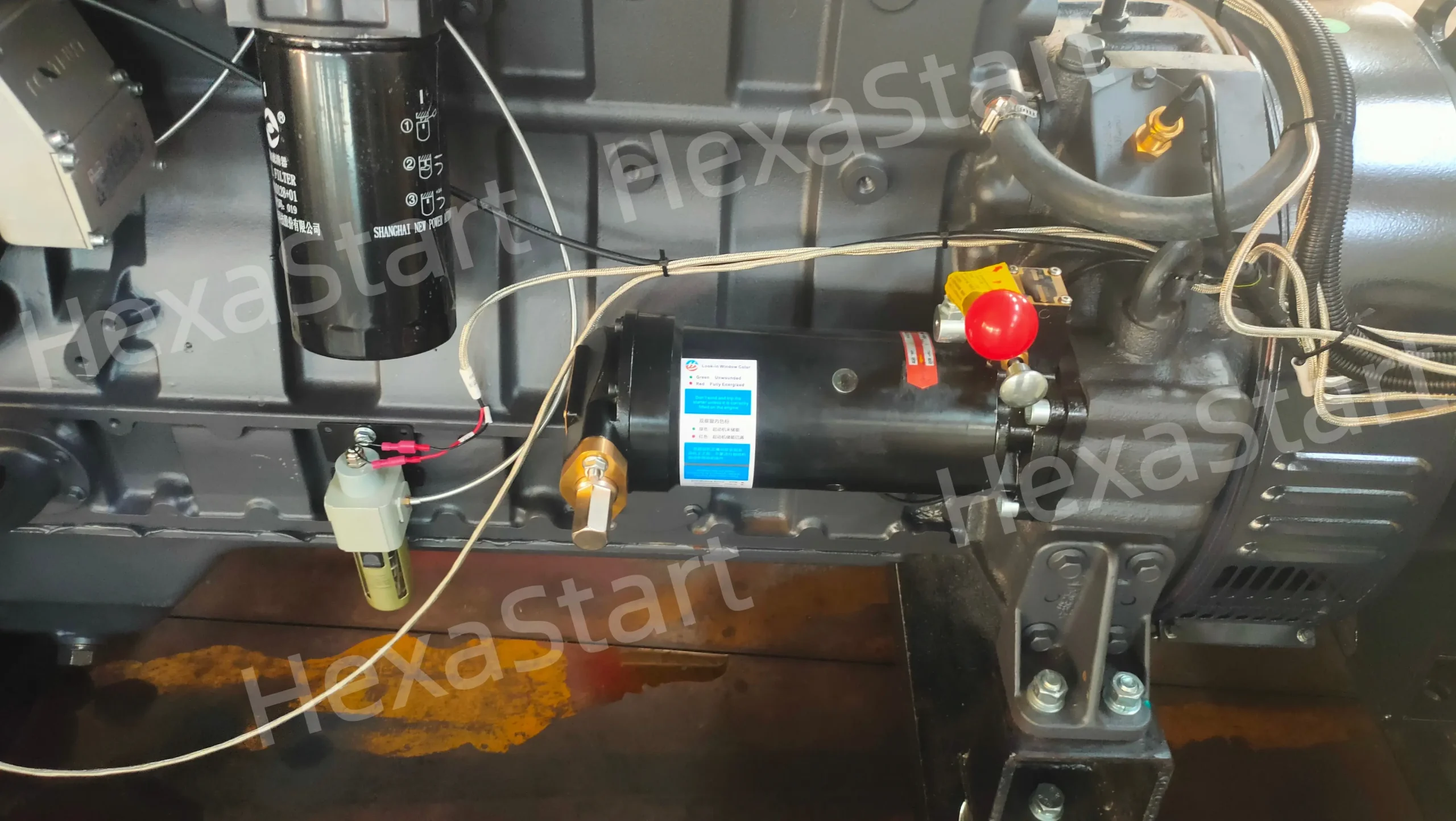

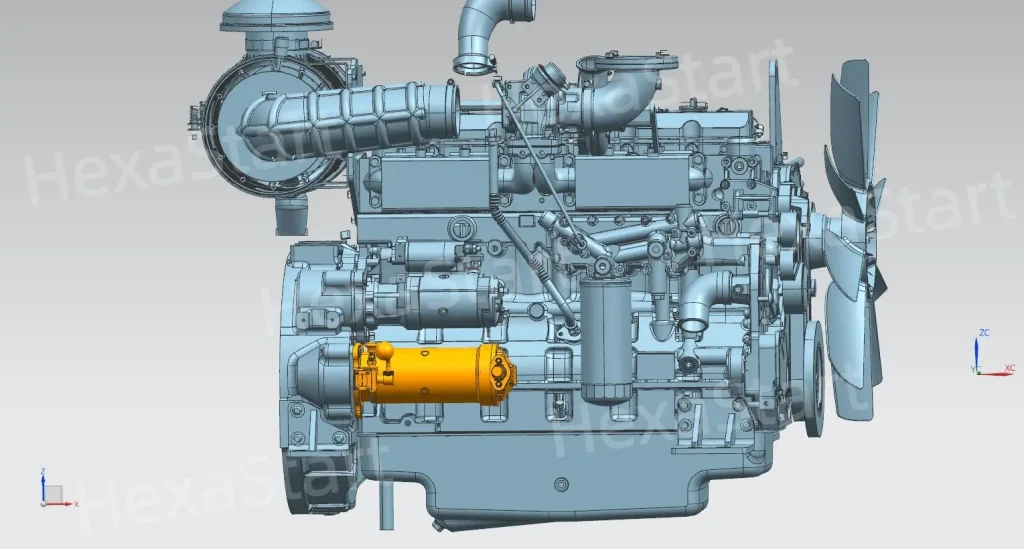

Flexible SAE Installation: Standard SAE heavy flange mounting allows direct bolt-on replacement of an electric starter, with no modification to the flywheel housing. For twin-starter installation, a flywheel housing with two starter positions is required, and a custom dual-lug housing can be made for engines that have only one.

Engine Application Matrix

Field-proven across 12L–18L heavy diesel engine platforms from premier global manufacturers, including Cummins (ISX/QSX15/K19 series), Caterpillar (C13/C15/C18 series), Weichai (WP12/WP13/WP17 series), Yuchai, Volvo Penta (D13/D16 series), Perkins, Shangchai, and Doosan.

Technical Specifications

Model Series	4100 Series
Engine Displacement Range	12.0L to 18.0L
Charging Mechanism	Manual Hand-Crank Winding (Reinforced High-Stress Spring Pack)
Flange Standards	SAE 1 / SAE 2 / SAE 3
Rotation Option	Clockwise (CW) / Counter-Clockwise (CCW)
Operating Environment	High and low temperature tolerance

View Specs

Parameters

Spring Starter Series		4100 Series
		HDP 2
		4100
Flange	SAE#	1,2&3
Engine Displacement	Liters (L)/cylinder & Max cylinder numbers	2.0&6
		1.6&8
		1.5&12
Max pinion torque	Nm	126
Max winding torque	Nm	100
Weight	kg	23
Turns to fully wind	turns	2+13
L	mm	365
A	mm	117
B	mm	130
