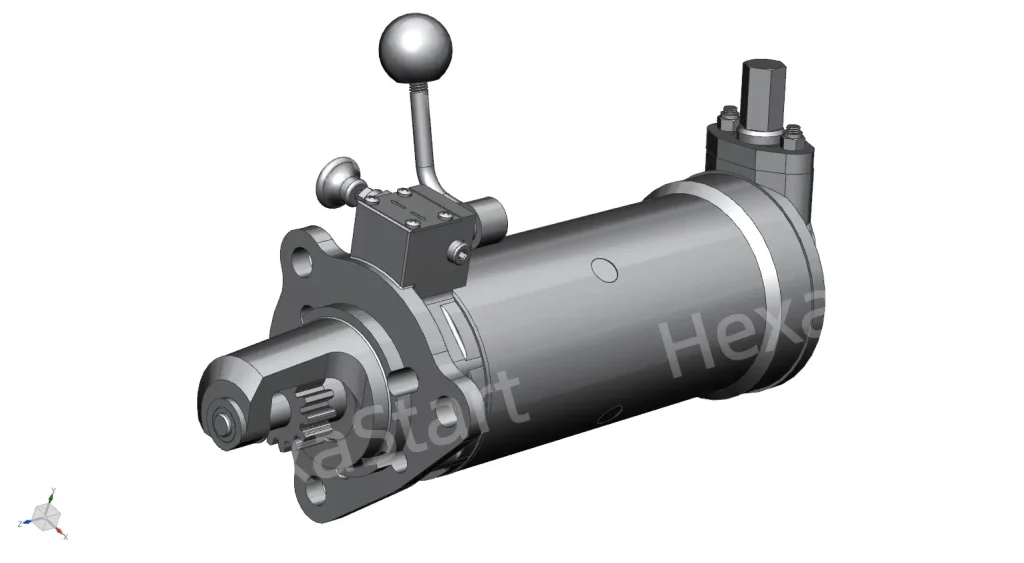

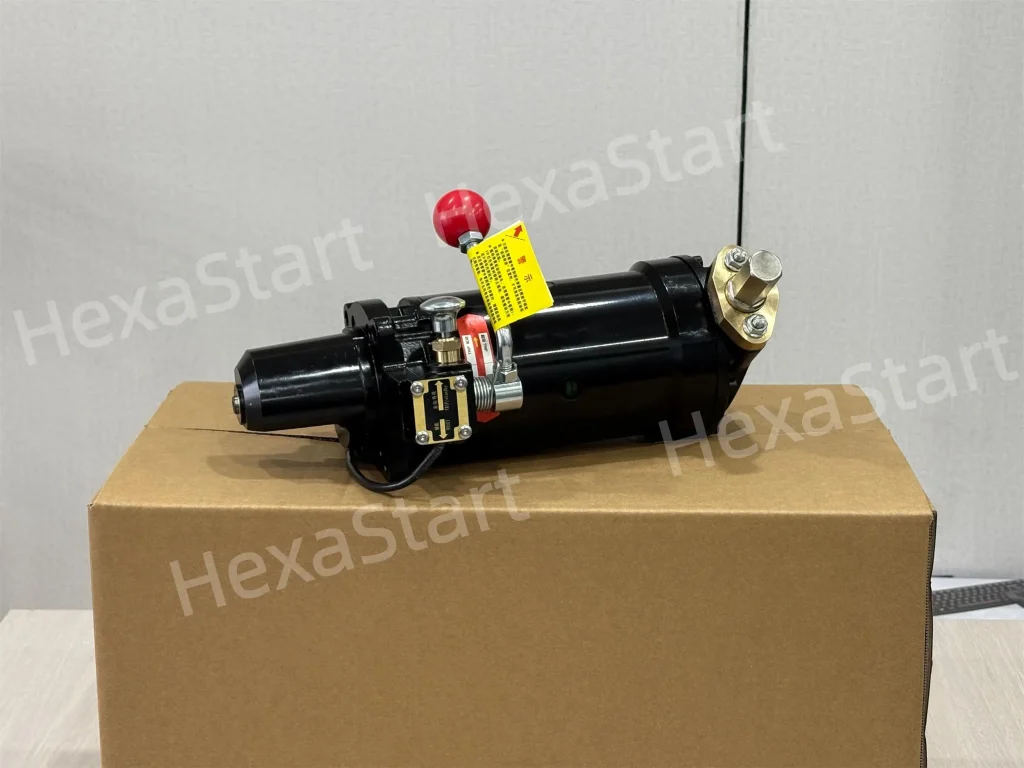

Spring Starters

HEXASTART spring starters provide a purely mechanical, battery-free and spark-free emergency starting solution for diesel engines. Utilizing high-grade mechanical energy storage, these heavy-duty starters deliver instant crankshaft rotation without relying on electrical systems, compressed air, or hydraulic pressure. They are a dependable fail-safe black-start option for harsh, hazardous, and remote environments.

Request a Quote

Products

Target Applications：

Marine Emergency Generators, Firefighting Pump Sets, Offshore Oil & Gas Platforms, Underground Mining Equipment, Data Center Standby Gensets, and Remote Military/Civil Power Units.

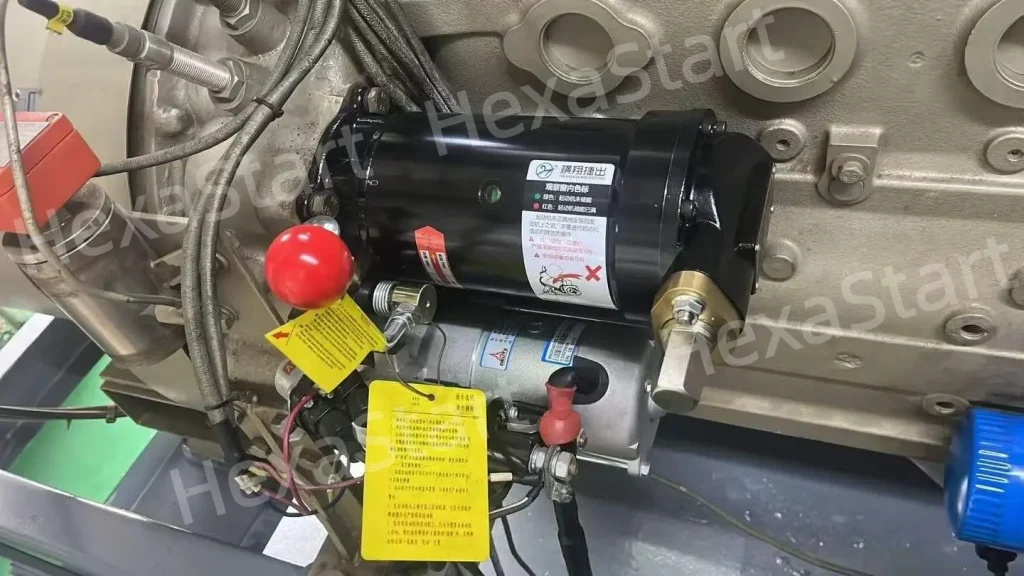

HEXASTART spring starters have been successfully matched and fitted to various multi-cylinder diesel engines, including Cummins, Weichai, Yuchai, Shangchai, Wudong, CAT, Beijing Internal Combustion Engine (BICE), Huabei Diesel Engine, Hebei Diesel Engine, and VOLVO. The spring starters can start diesel engines with displacements up to 50L.

Key Features & Advantages

  • Purely Mechanical & Battery-Free: Completely independent of electrical power, battery drain, or wiring failure.
  • Spark-Free Operation: Zero electrical spark hazard, suited to oilfield, mining and chemical processing setups.
  • Zero Maintenance & Long Service Life: Requires no battery replacements, oiling, or complex field maintenance.
  • Wide Temperature Tolerance: Reliable starting in both high and low temperature environments.
  • Flexible Installation: Compact SAE-interface design allows direct bolt-on replacement of an electric starter with no modification to the flywheel housing. For twin-starter installation, a flywheel housing with two starter positions is required, and a custom dual-lug housing can be made for engines that have only one.

How It Works:

The spring starter stores energy via a manual winding crank that compresses internal high-stress disc springs. Once fully charged, pulling the trip lever releases the stored mechanical energy directly into the engine flywheel ring gear, instantly cranking the engine to start.
